Yaskawa Robot ARC/LASER Welding Solution

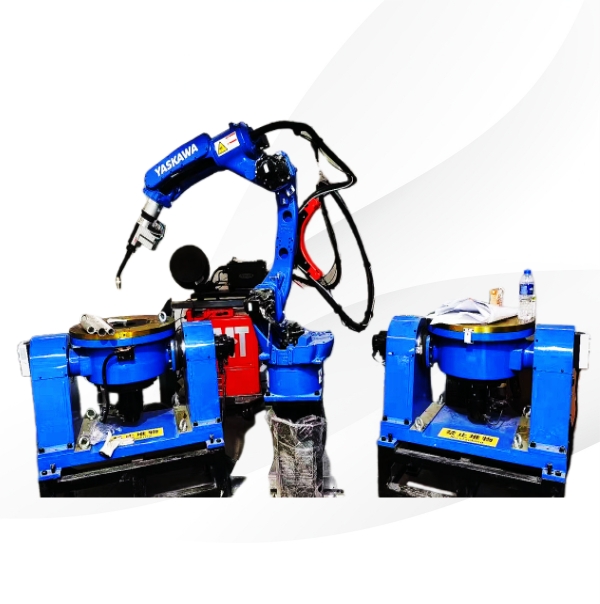

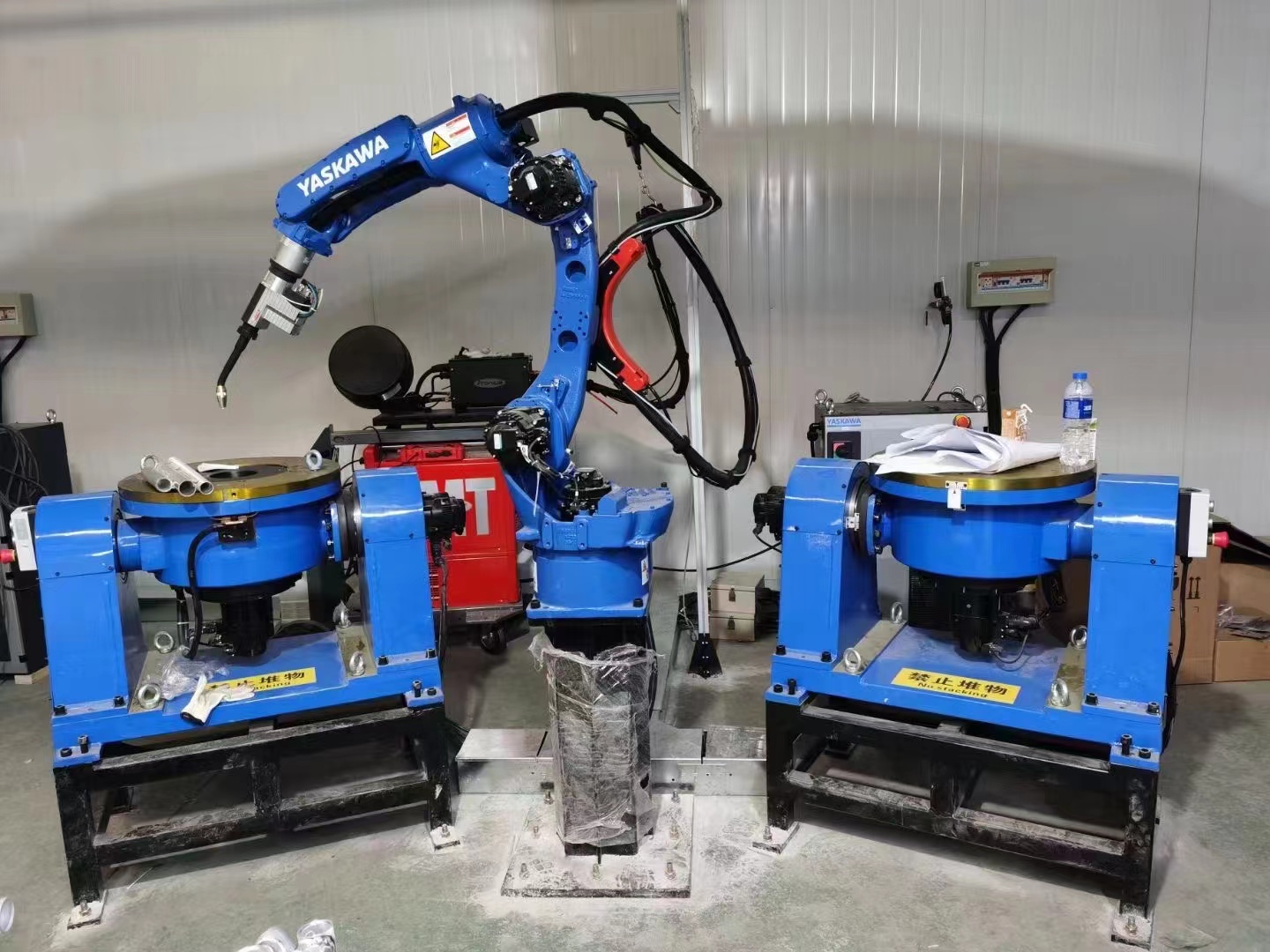

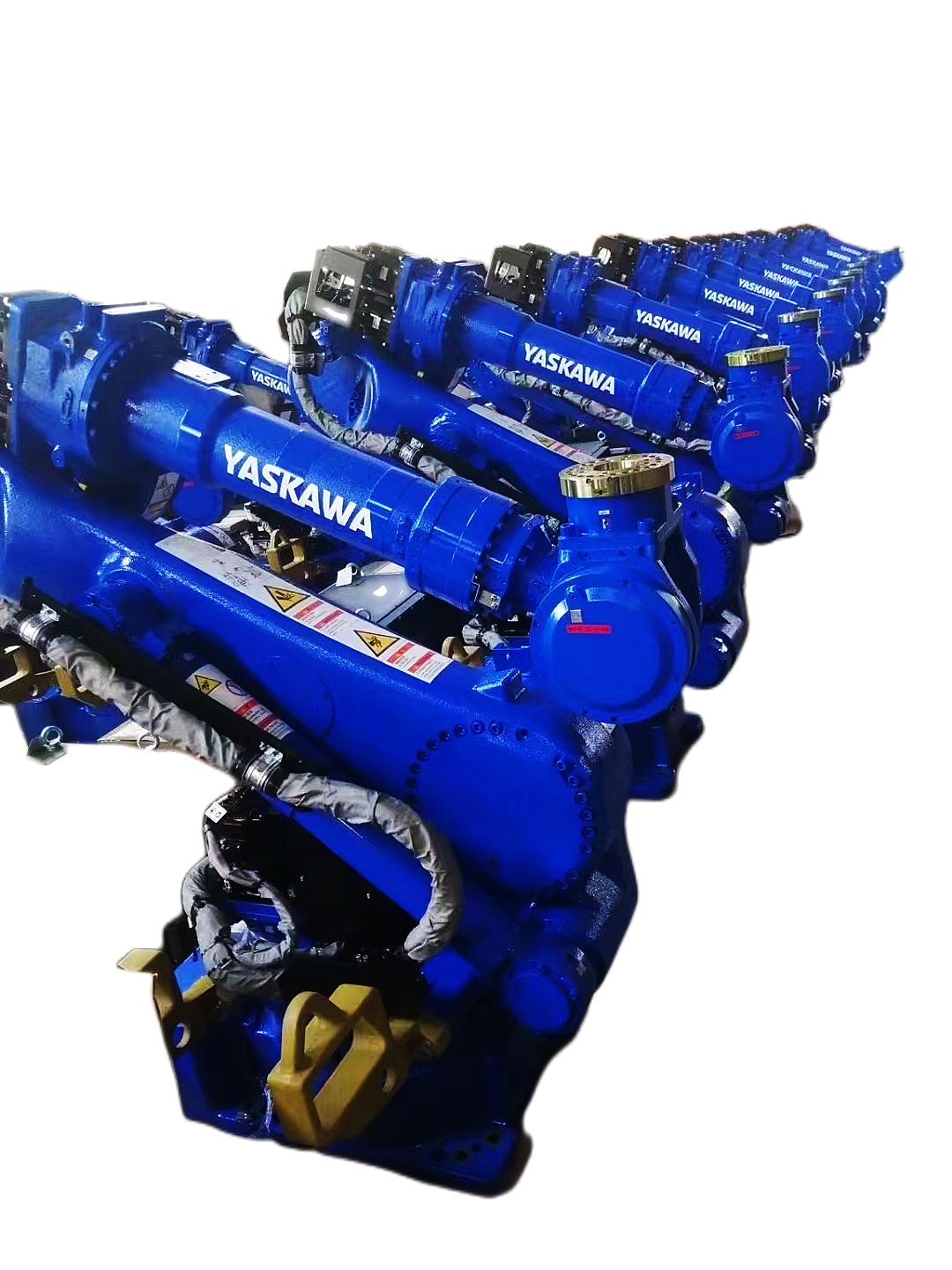

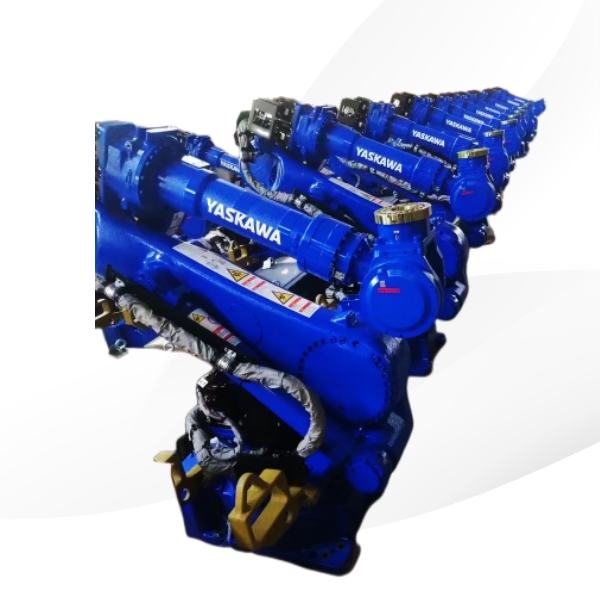

Robot-YASKAWA-MOTOMAN-GP25-12
YASKAWA-MOTOMAN-GP25-12 achieves high productivity with high-performance transportable quality and high-speed motion performance
・ The action range of MOTOMAN-GP25-12 (load 12kg - dynamic range 1730mm) was extended to 2010mm, further expanding the object range of automation.
・ The hollow arm structure can be used to embed sensor cables and gas pipes
・ Designed to reduce the interference between the arm and peripheral equipment

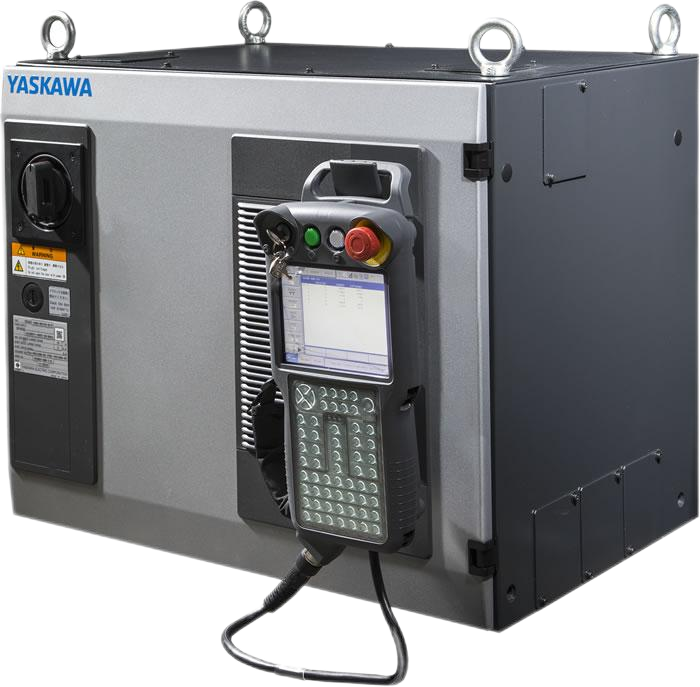

Cabinet&controller-YASKAWA-YRC1000
Features Built to a global standard and does not require a transformer for input voltages ranging from 380VAC to 480VAC I/O communication speed is improved by as much as 50% for superior work efficiency MLX300 software add-on option for PLC integration High path accuracy enables increased precision in trajectory performance independently of motion speed Integrated machine and functional safety for simplified setup Single controller-to-robot cable for improved cable reliability

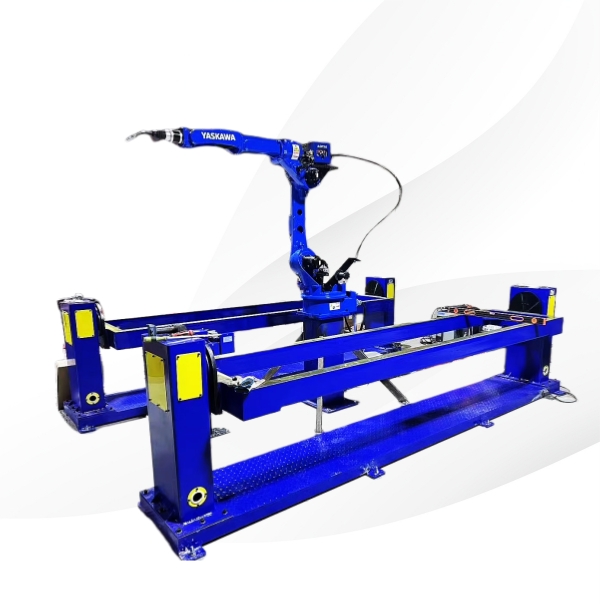

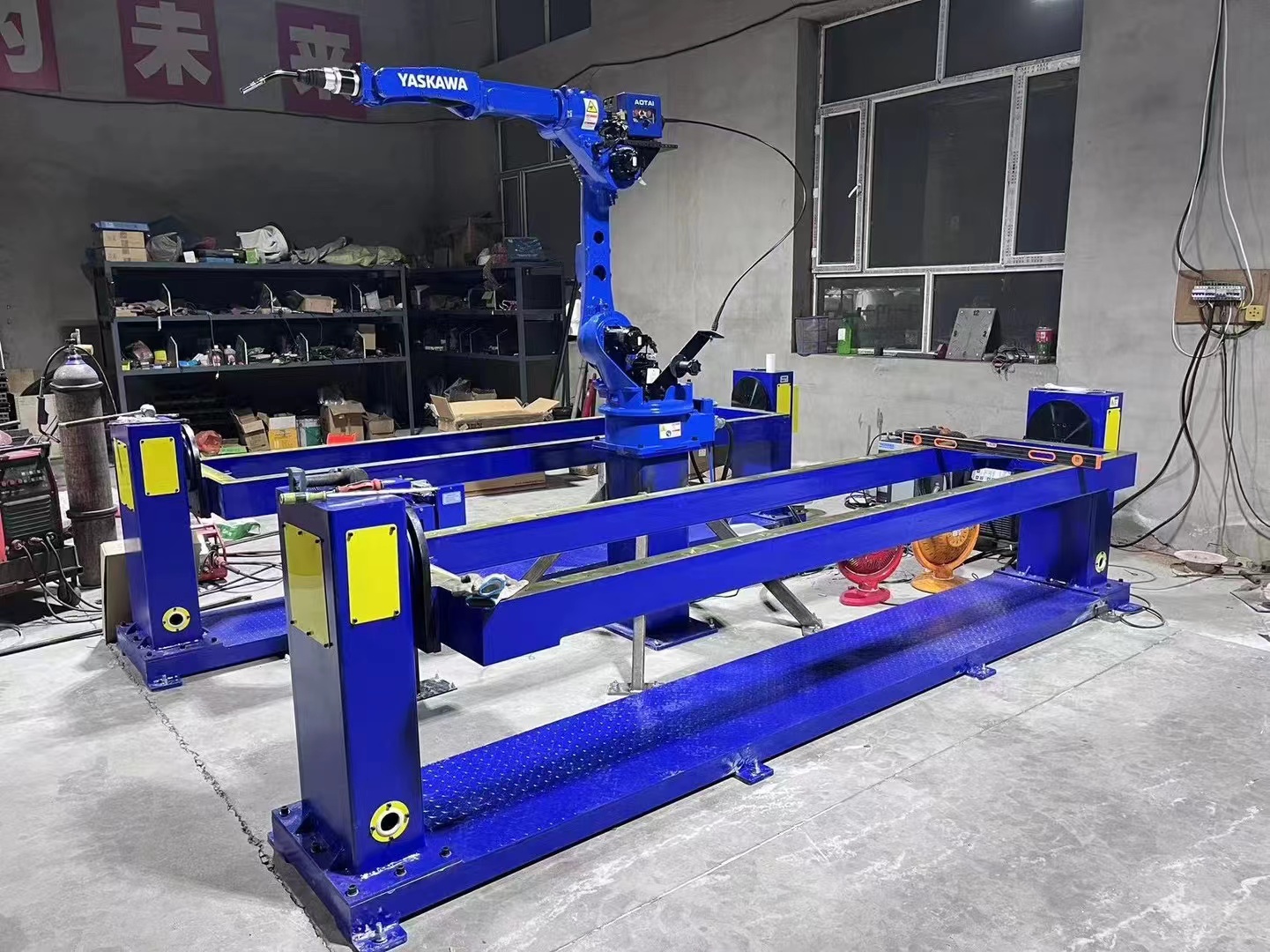

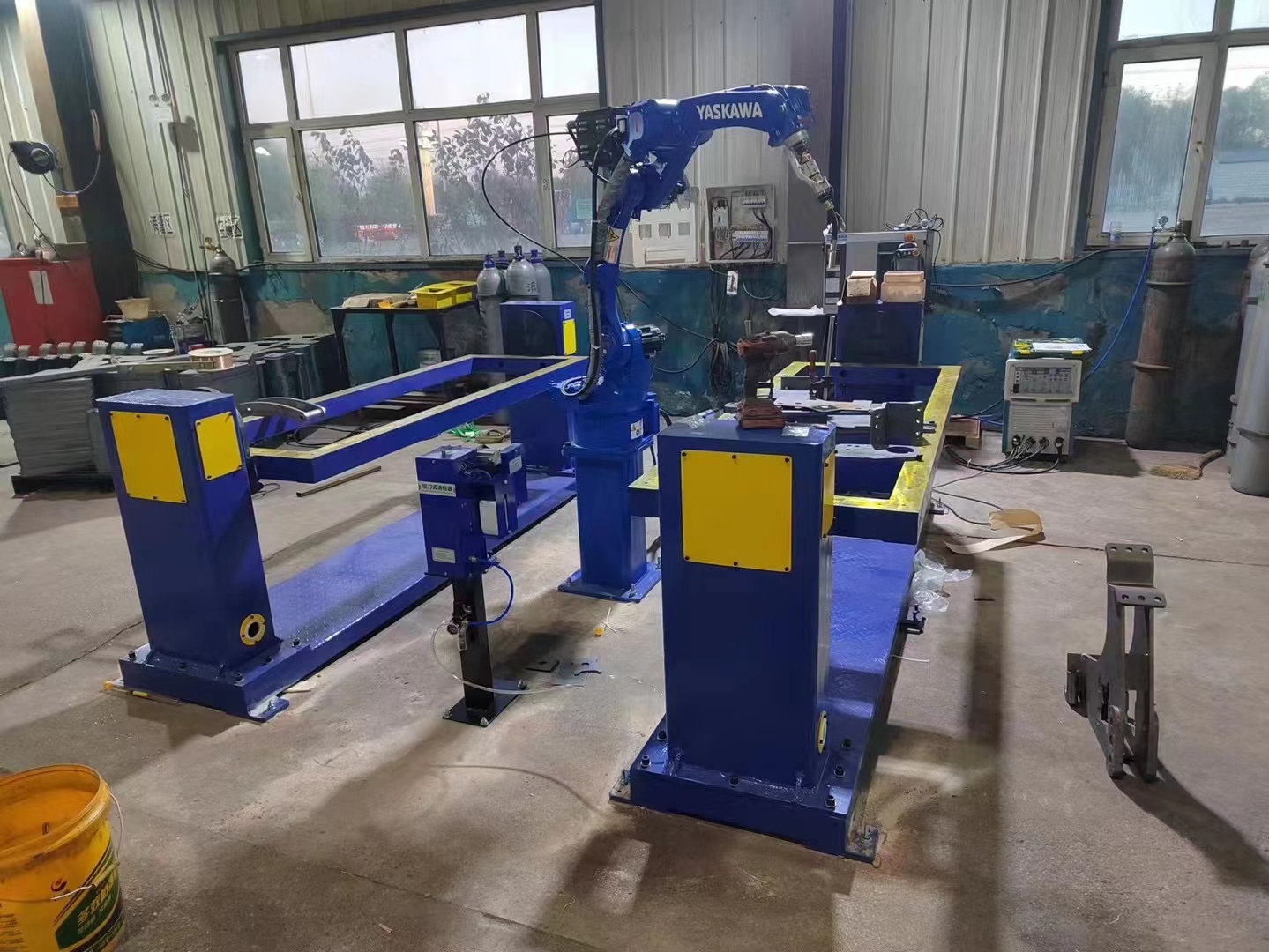

Positioner

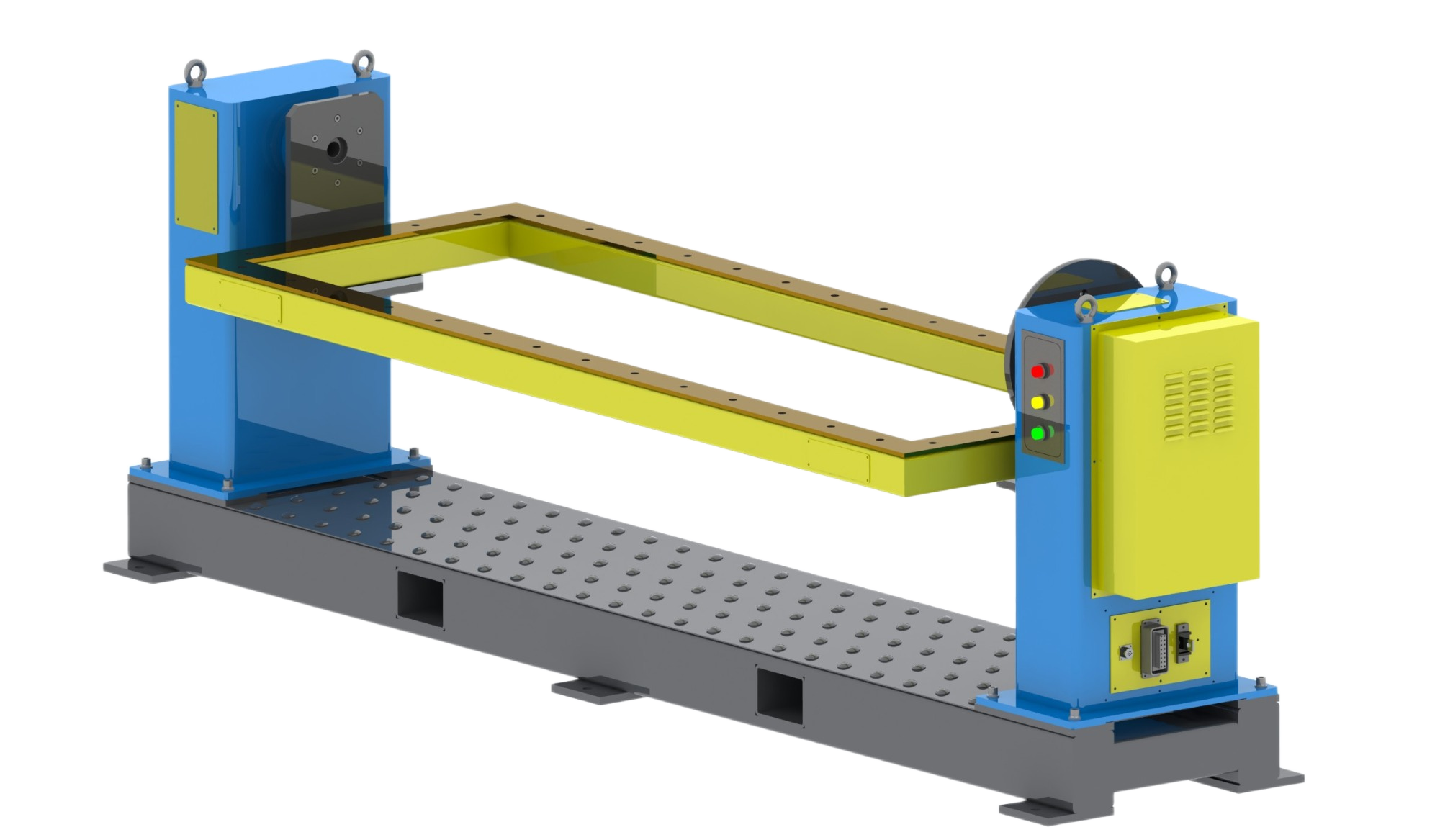

- The single-axis servo positioner is mainly composed of an integral fixed base, a rotating headstock and a tailbox, a welding frame, a servo motor and a precision reducer, a conductive mechanism, a protective cover and an electrical control system.
- By configuring different servo motors, the positioner can be operated remotely through robot teaching device or external operation box;
- The required welding and assembly angle is achieved by turning the workpiece fixed on the workbench;
- The rotation of the worktable is controlled by servo motor, which can obtain ideal welding speed;
- The workpiece is clamped by the positioner chuck, and the tooling is added again through the shape of the middle plate to prevent the workpiece from shifting during welding, and the roller is used to support the workpiece.
- The fixed workpiece adopts domestic well-known brand chuck to ensure the stability of the product during welding and the convenience of loading and unloading;
Welding Source-OTC/YASKAWA
OTC-EP500L FROM JAPEN welding machine has a standard welding management function, which improves the convenience of operation and realizes welding quality management. It can store 100 welding specifications in memory, and can also realize the backup of welding conditions through USB. And the backed-up data can be used to: set the same content and copy it to other welding power sources; analyze the output waveform when welding is not good; manage abnormal history.
Welding gun-ARCTEC

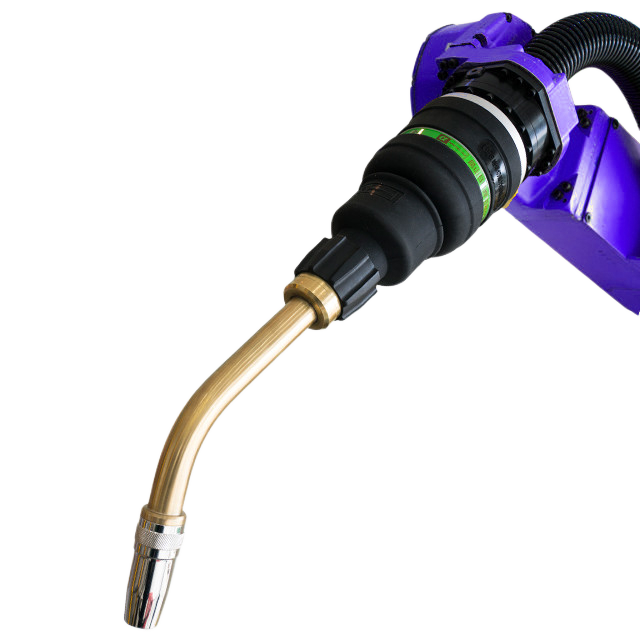

ARCTEC FROM TAIWAN
- The anti-collision device uses the induction switch imported from Japan to timely feedback the impact information and protect the key parts of the robot induction switch imported from Germany
- The welding gun is flexible and simple, does not occupy space, increases the welding range and reduces interference

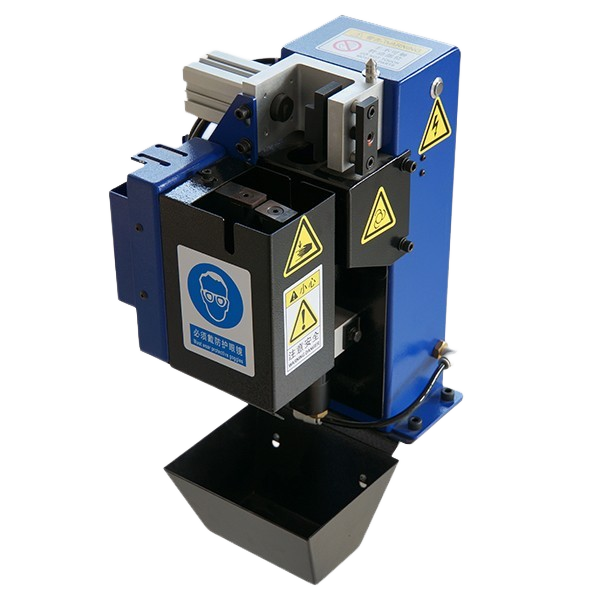

Welding gun cleaning and wire injection-ARCTEC
Two independent positions for wire cutting, slag cleaning and oil injection
It can be attached to the welding workbench or optional aluminum workbench Adopt pneumatic motor, with stable rotation speed and efficient cleaning of welding slag Any welding robot can be connected Reamers can be replaced with various sizes

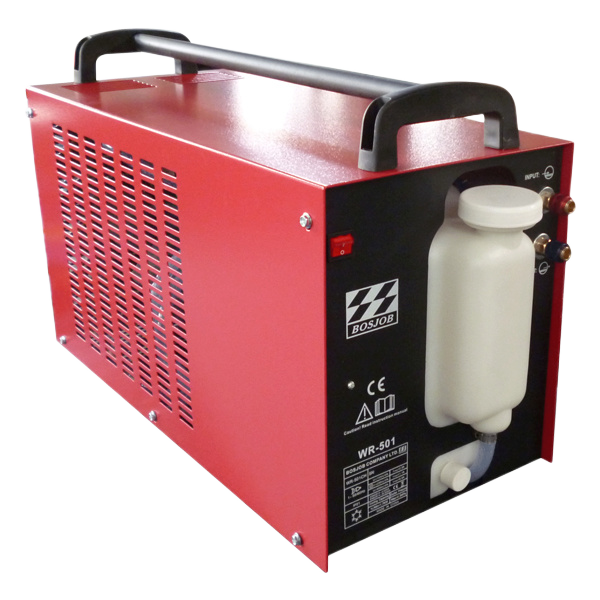

Water chiller for welding gun-Bosjob water chiller
Bosjob water chiller
- High voltage electrostatic spray treatment is adopted, with elegant and unique appearance and durability.
- Unique internal structure design, small size, stable performance, exquisite and beautiful;
- The system components are of well-known brands at home and abroad to ensure the excellent quality and good safety and reliability of the equipment;

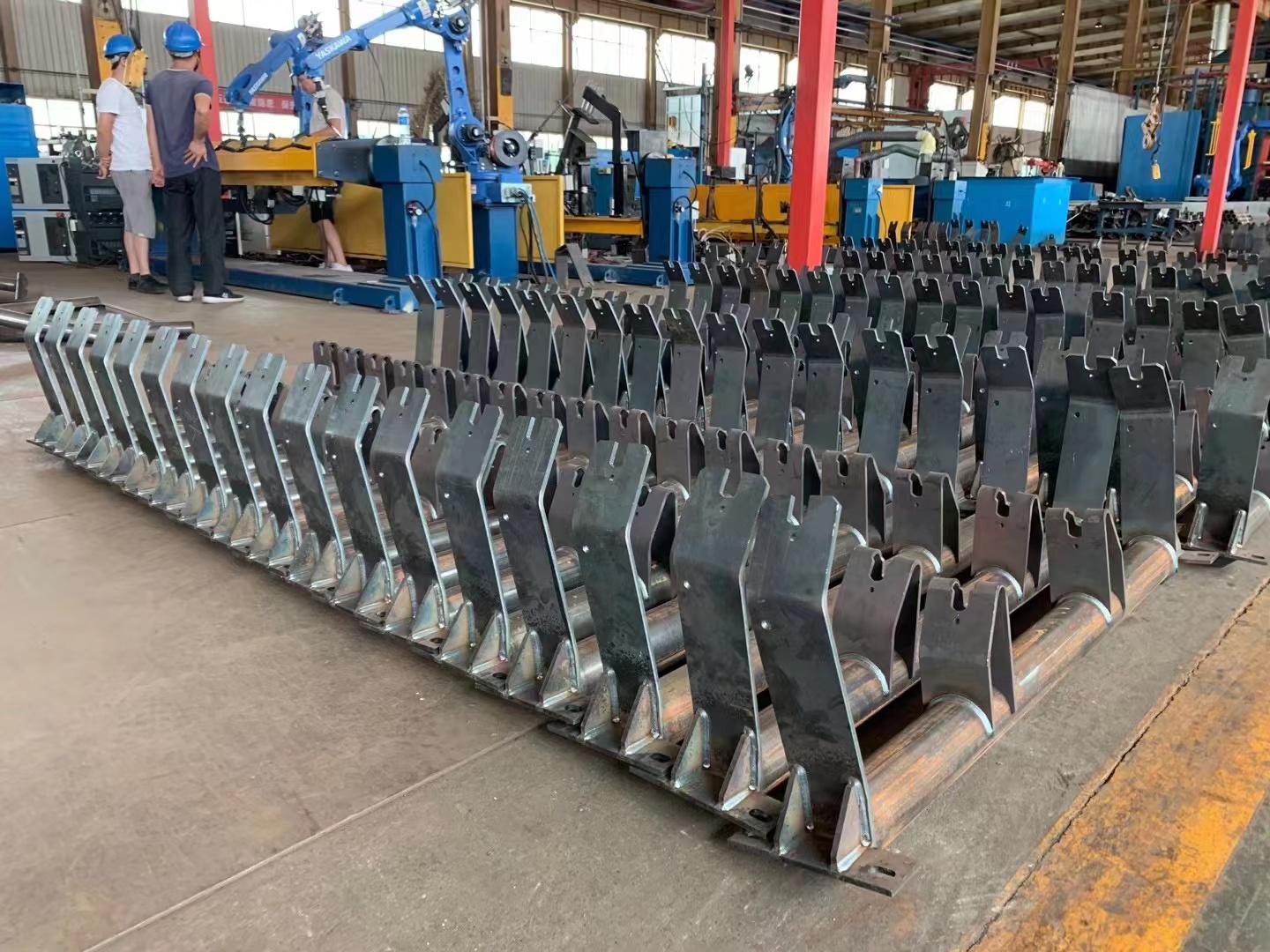

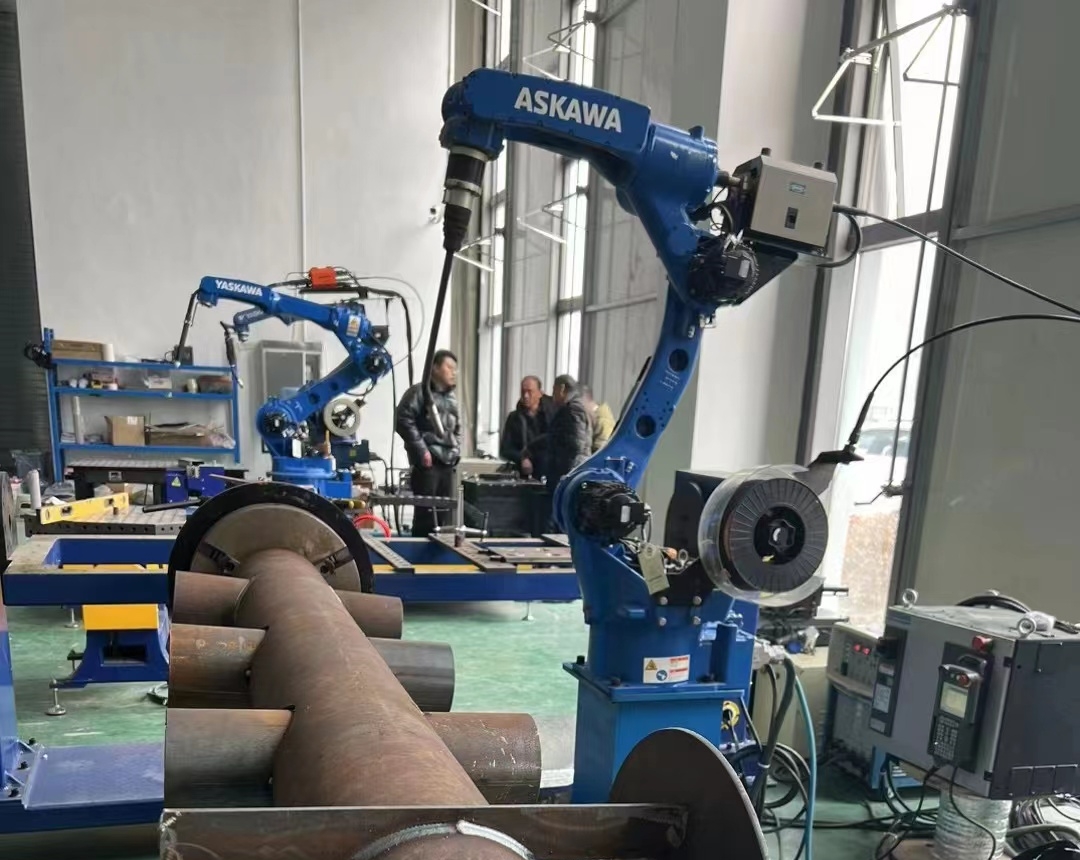

Samples & Application

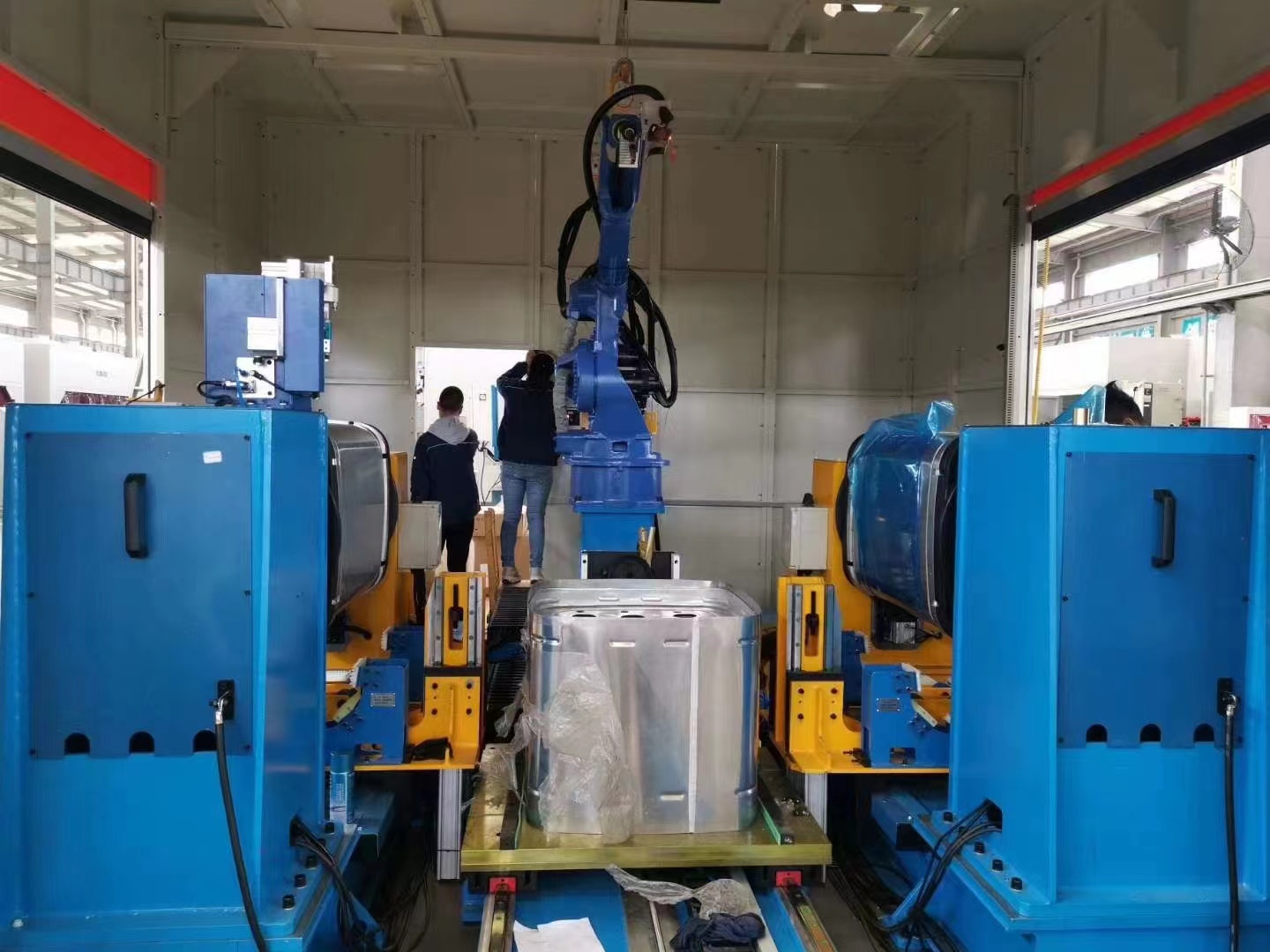

The welding robot has the characteristics of stable performance, large working space, fast movement speed and strong load capacity. The welding quality is obviously superior to manual welding, and the productivity of spot welding is improved
