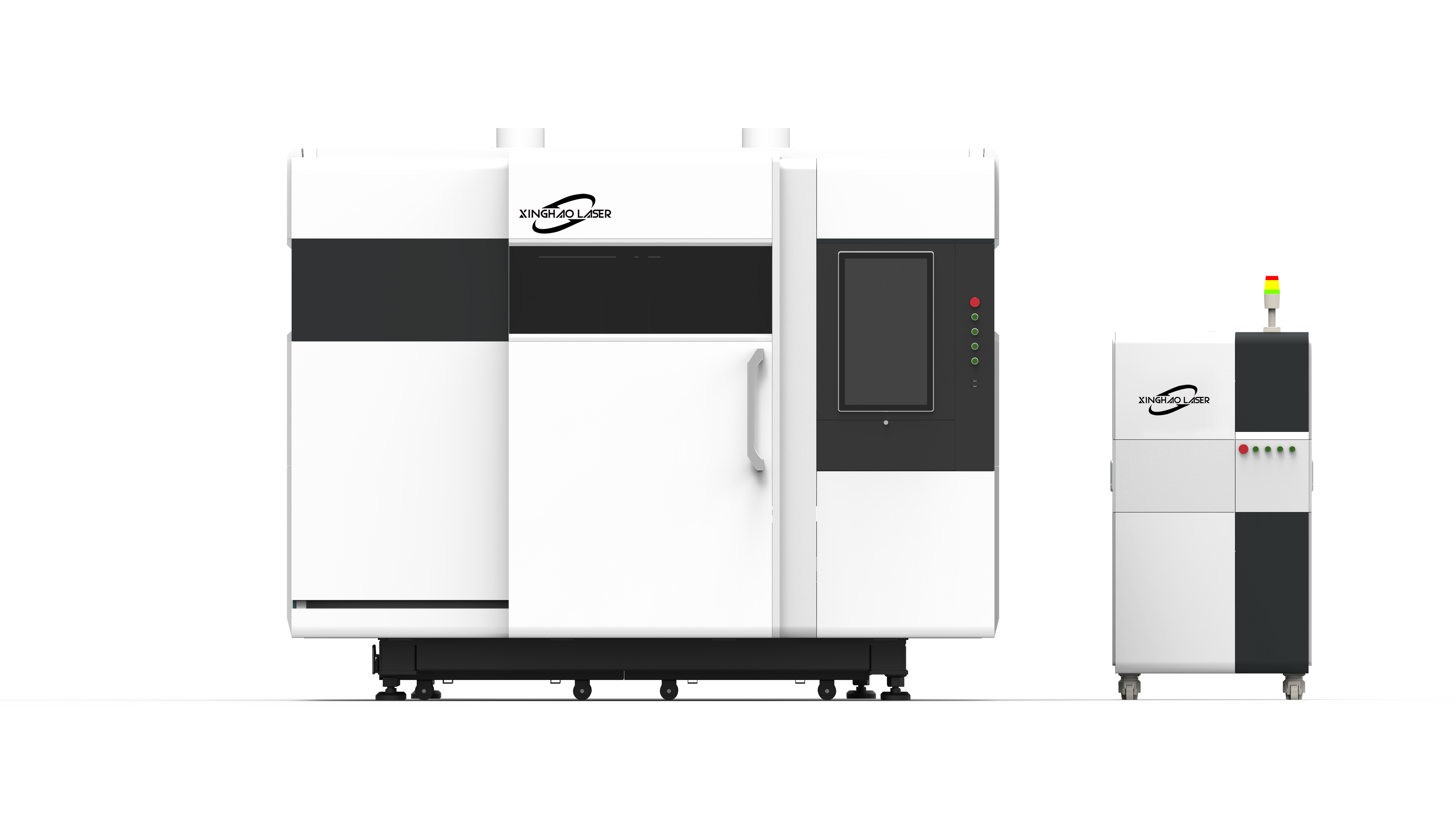

Ultra High Power – P series
Technical Parameters

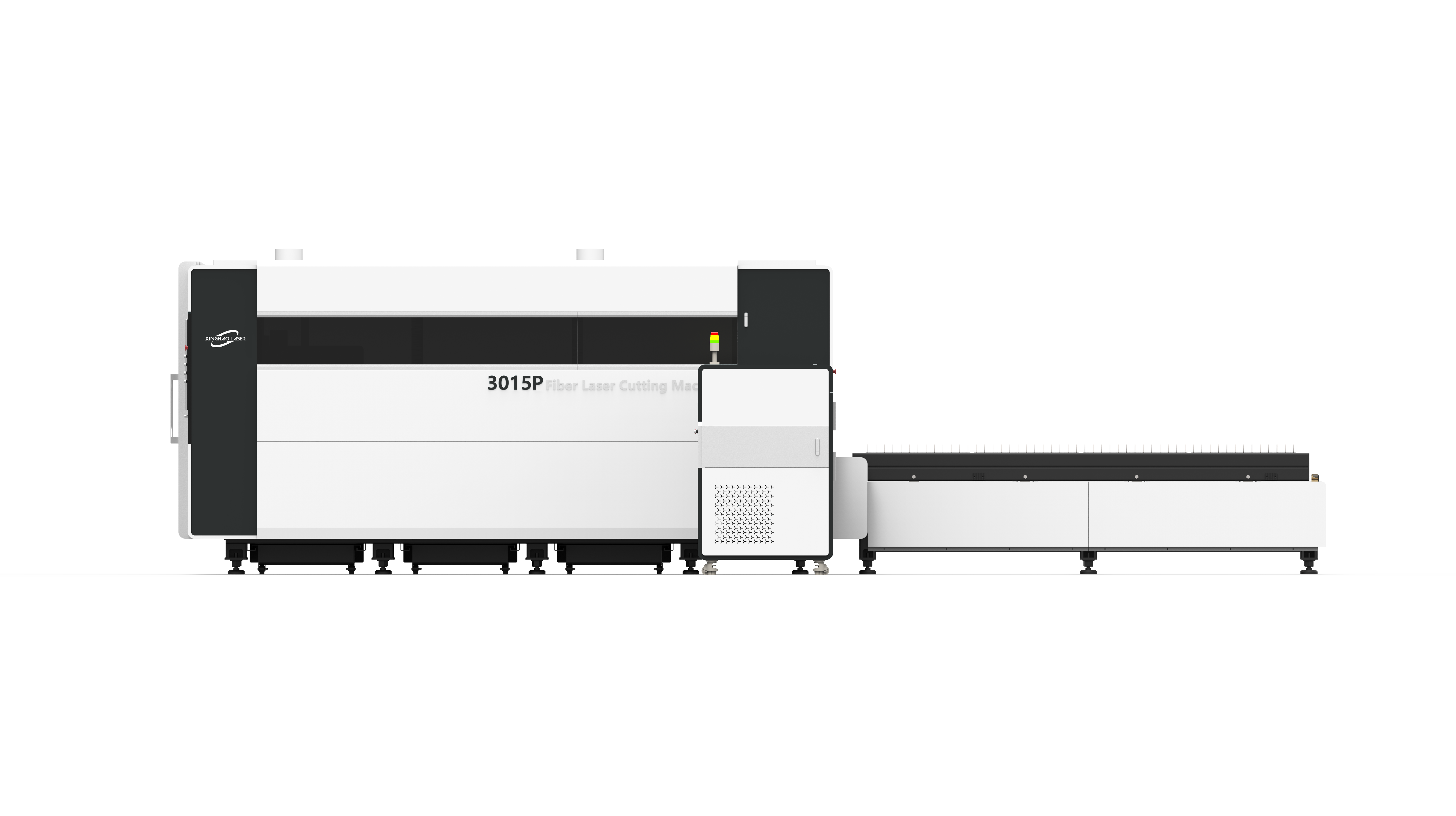

| Model | 3015P | 4020P | 6020P | 6025P |
| Working area | 3048x1524mm | 4000x2000mm | 6100x2000mm | 6100x2500mm |
| Laser source | Raycus & MAX & IPG | |||
| Laser power | 1000 - 30000w | |||
| Max. linkage speed | 150m/min | |||
| Max. acceleration | 2G | |||
| Positioning accuracy | ±0.03mm | |||
| Repositioning accuracy | ±0.02mm | |||
IPG&MAX Laser source
IPG Photonics is a global leader of the high power fiber laser. The fiber laser manufactured by it has such advantages as high quality light beam quality andreliability, ultrahigh output power, higher electro-optical conversion efficiency,lower maintenance cost, volume with compact structure, mobility and durability,low consumption, environment friendly, etc.
Raytools Laser source
Raytools originated in Switzerland and has been specialized in the research and development of laser cutting head industry for 26 years. Its products have been sold well in more than 120 countries.
Cutting system
Cypcut is a widely used softeware of laser cutting process, with a large customer base and feedback, stable performance and comprehensive functions is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphic processing, parameter setting, user-defined cutting process editing, layout, path planning, simulation, and cutting control.

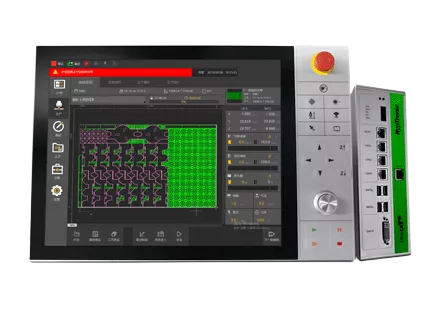

Cutting system FSCUT8000
FSCUT8000 is high end bus-based intelligent control system for 8KW ultra-high power fiber laser cutting. It’s stable and reliable, easy to install and debug and safe. It has abundant features and excellent performance. It supports and provides modularization, personalized, automatic and Informatization solutions.
Stronger Welding Work Bed
High performance, strong stability, good integrity, rigidity and toughness;
One-piece cast aluminum beam, no rivets at both ends, more stable.
Cast aluminum crossbeam
It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.
Samples & Application
Sheet & Tube Laser Cutting Machine, application for process both steel sheet and tube.
Carbon and stainless steel, mild steel, soft steel, galvanized steel, coated steel, alloy, aluminum, copper, brass, titanium and more
Round, square, triangle, rectangle, oval, circular tubes and pipes.
One machine can achieve two purposes. for users who need to cut plates and pipes, the purchase cost is greatly saved.
