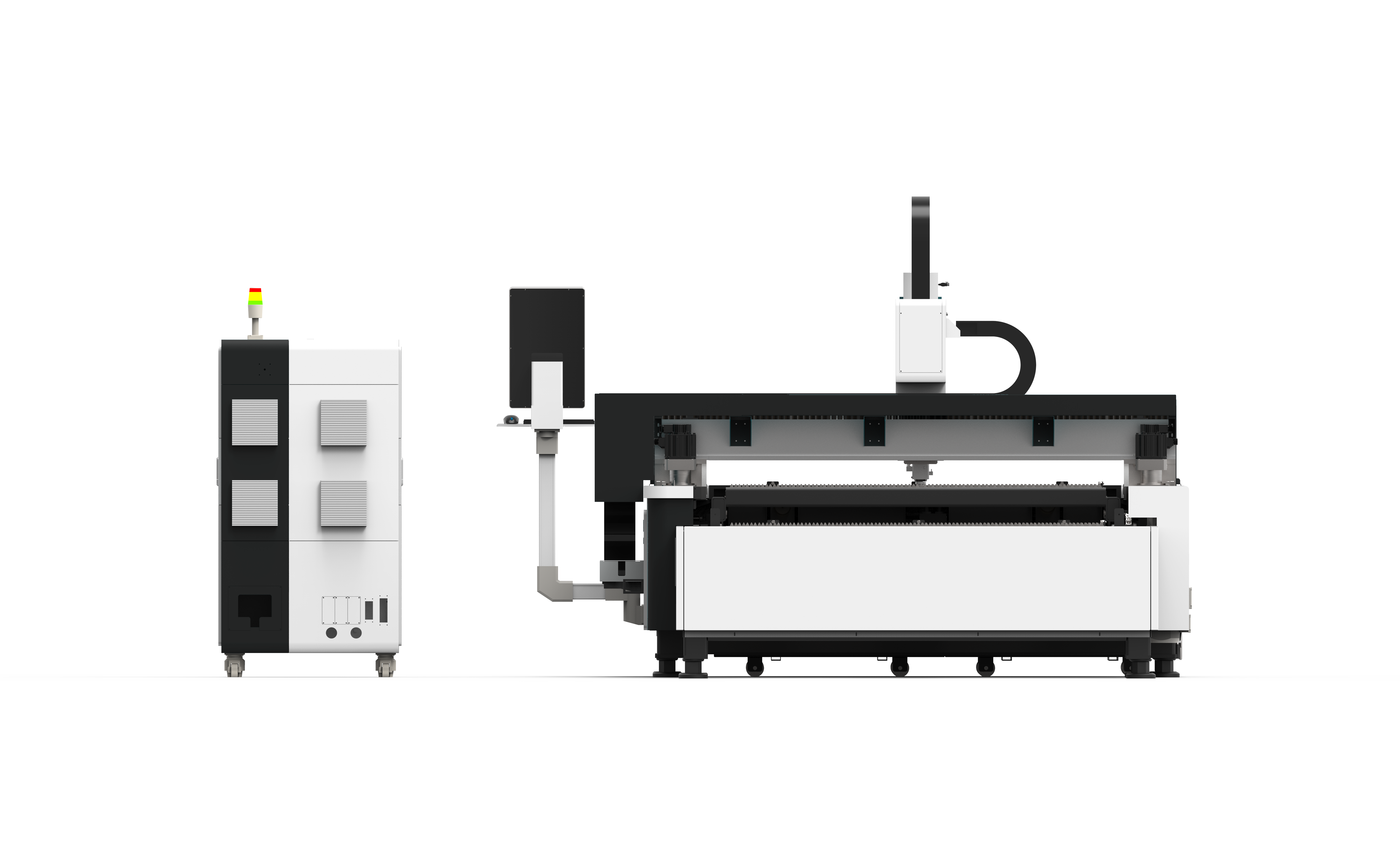

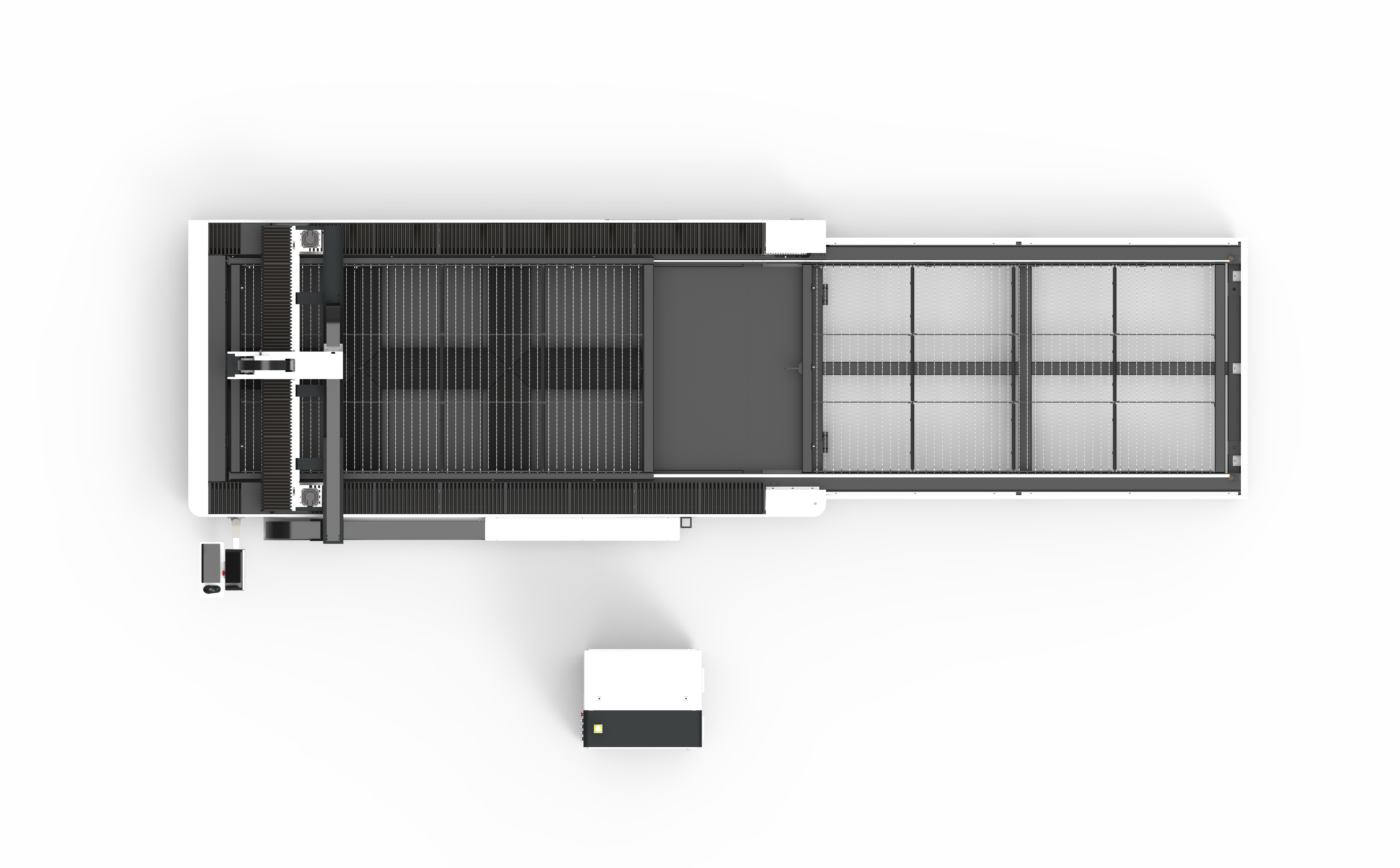

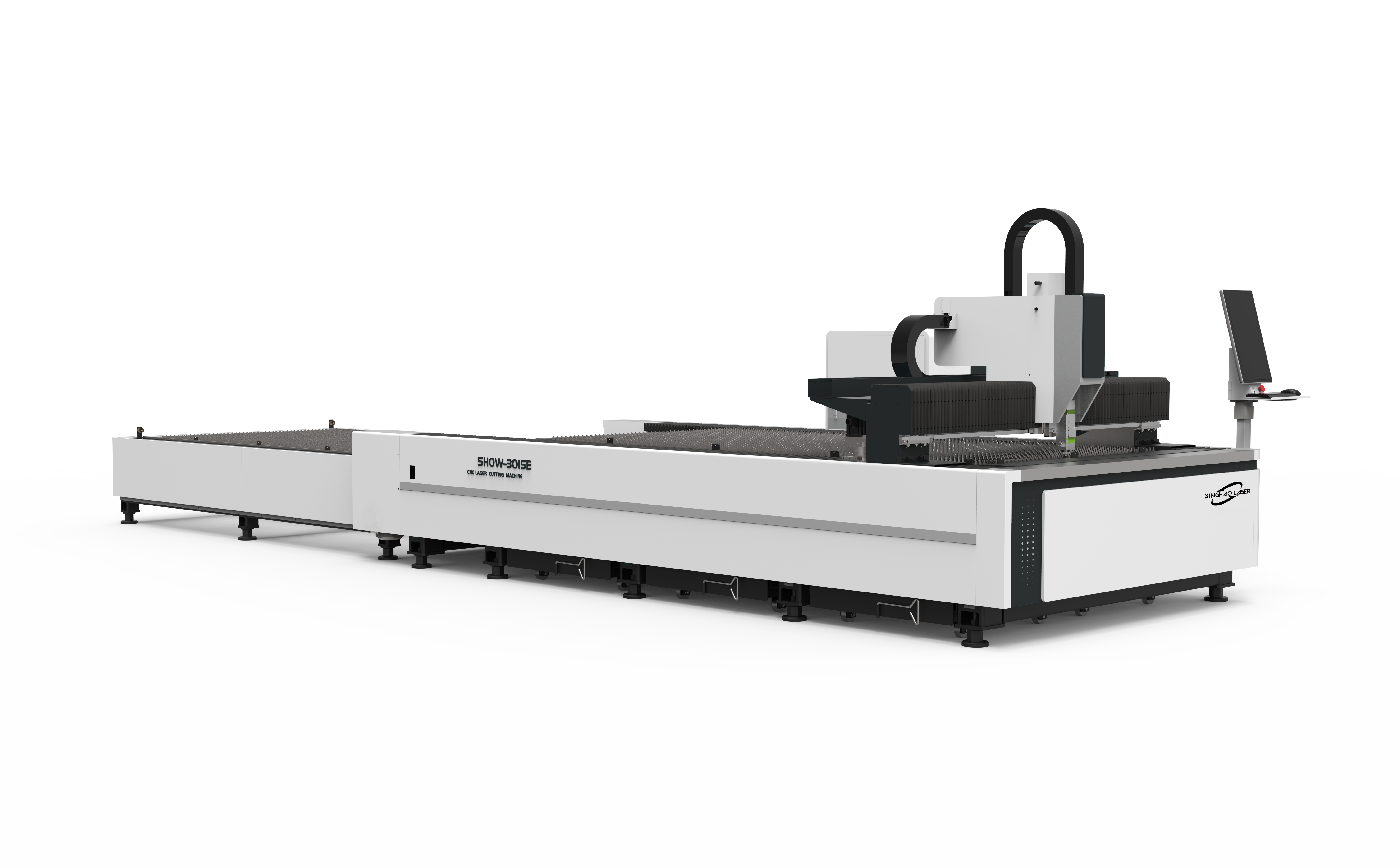

Exchange Platform – E series

Short Description:

XINGHAO fiber laser cutting machine includes a cooling, lubricating and dust collection system guaranteeing durability and longevity. The strict assembly process and the world’s top brand parts ensure high cutting precision and powerful cutting ability, so as to maximize the productivity and profitability of sheet metal fabricators.


Product Detail

Product Tags

Technical Parameters

Model 3015C 4015C 4020C 6025C
Cutting range 3050*1525mm 4000*1500mm 4000*2000mm 6000*2500mm
Laser source Raycus & MAX & IPG
Laser power 1000-6000w
Transmission system Gantry double drive structure
Maximum moving speed 100m/min
Maximum acceleration 1.0G
Positioning accuracy ±0.01mm/1000mm
Repeat positioning accuracy ±0.03mm/1000mm

IPG&MAX Laser source

IPG Photonics is a global leader of the high power fiber laser. The fiber laser manufactured by it has such advantages as high quality light beam quality andreliability, ultrahigh output power, higher electro-optical conversion efficiency,lower maintenance cost, volume with compact structure, mobility and durability,low consumption, environment friendly, etc.

222_副本
4

Raytools Laser source

Raytools originated in Switzerland and has been specialized in the research and development of laser cutting head industry for 26 years. Its products have been sold well in more than 120 countries.

Cutting system

Cypcut is a widely used softeware of laser cutting process, with a large customer base and feedback, stable performance and comprehensive functions is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphic processing, parameter setting, user-defined cutting process editing, layout, path planning, simulation, and cutting control.

Image_20220917171651
meitu-1652190865546

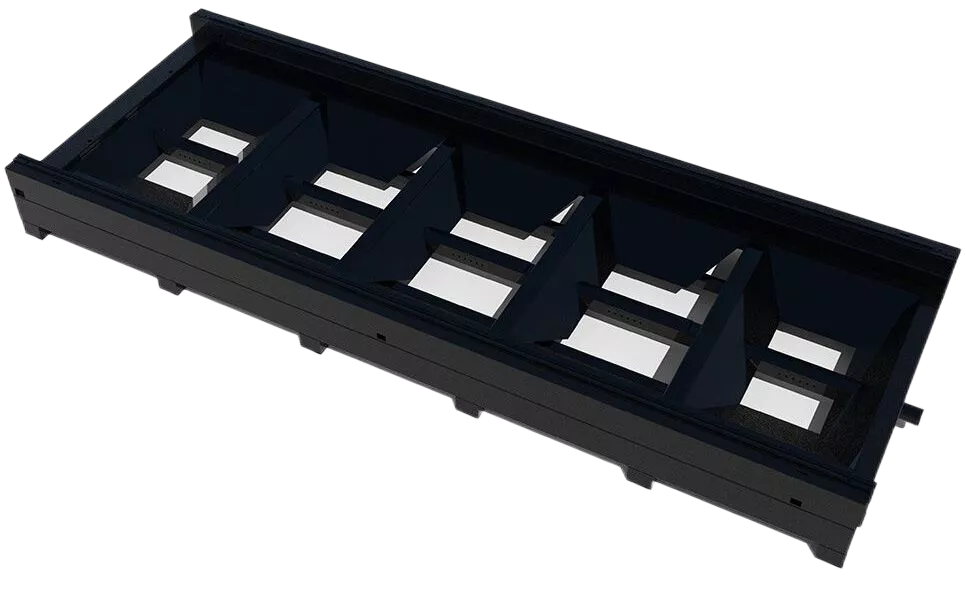

Square Tube Welding Work Bed

High performance, strong stability, good integrity, rigidity and toughness;
One-piece cast aluminum beam, no rivets at both ends, more stable.

Cast aluminum crossbeam

It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.

meitu-1652187080537

Samples & Application

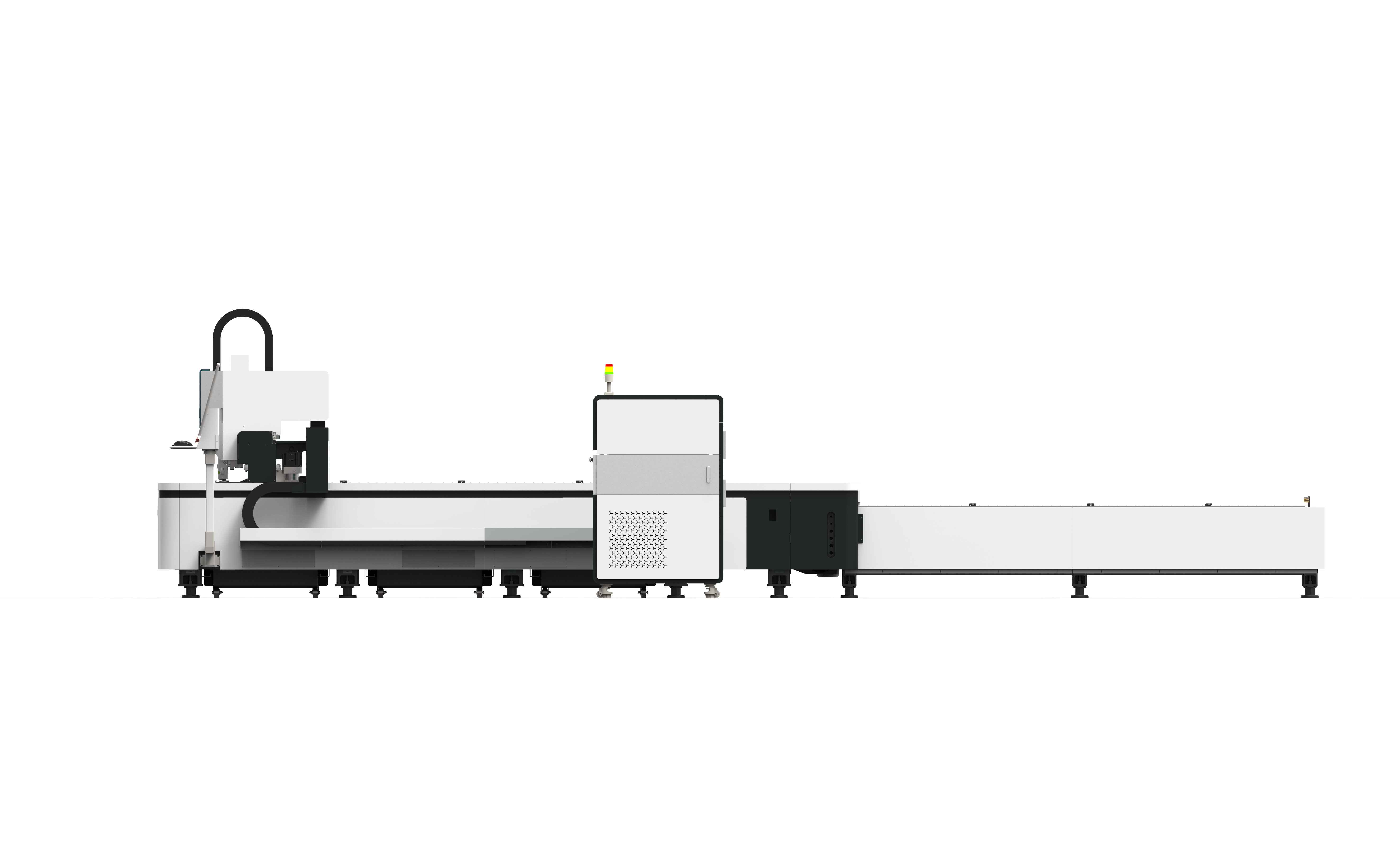

Sheet & Tube Laser Cutting Machine, application for process both steel sheet and tube.
Carbon and stainless steel, mild steel, soft steel, galvanized steel, coated steel, alloy, aluminum, copper, brass, titanium and more
Round, square, triangle, rectangle, oval, circular tubes and pipes.

One machine can achieve two purposes. for users who need to cut plates and pipes, the purchase cost is greatly saved.
