Handheld Fiber Laser Welding Machine

Short Description:

Using  the  latest  generation  fiber  laser  source  and  Independently  developed ,XH LASER hand-held laser welding machine Filled in the blank of hand-held welding in laser equipment industry.Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.

1. Fast welding speed, 2~10 times faster than traditional welding.

2. Easy operating need no training.

3. Welding seam beautiful smooth and beautiful, don’t need polish, save your time.

4. No deformation or welding scar, firm welding of the work piece.

5. Laser welding has less consumables and long service life.

6. Safer, more environmentally friendly.

Product Detail

Product Tags

Technical Parameters

Laser Power 1000W 1500W 2000W 3000W
Laser Source Raycus & MAX
Welding Head CHAOQIANG&Au3Tech
Control system CHAOQIANG&Au3Tech
Water chiller HANLI/S&A
Length of fiber cable 10m
Dimensions 1550X800X1350MM
Weigh 260Kg
Power Requirements 220V 1 PHASE 60HZ
Working Humidity ≤70%
Working temperature 5-45°
Welding Depth
Laser Power 1500W 2000W 3000W
Stainless steel Max welding depth 4mm Max welding depth 6mm Max welding depth 8mm
Aluminum Max welding depth 3mm Max welding depth 4mm Max welding depth 6mm
Mild steel Max welding depth 5mm Max welding depth 6mm Max welding depth 8mm

Main Configures

MAX

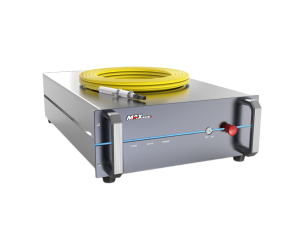

Laser Source - MAX&Raycus

Stable quality and high performance, with High photoelectric conversion rate

水冷机

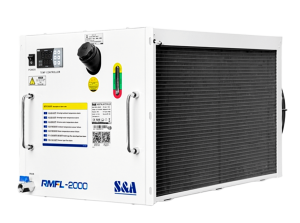

S&A/Hanli Water chiller - S&A

Accuracy of temperature control: ±1.5℃
φ12mm Quick connector，φ6mm Quick connector

送丝机

Automatic Wire Feeding - CQWY&Au3Tech

Stepper motor, 5 meters feeding length
Wire diameter 0.8mm, 1.0mm
feeding speed 0-80mm/min

焊接头

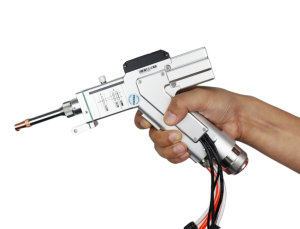

Welding Head - Au3Tech

Safe and stable, easy to operate
Stable light output and beautiful welding

未命名图片

LCD Operator Board - CQWY

Convenient touch screen operation

Stable control system, supports multiple languages

未命名图片-3

Various Welding Nozzle

The machine is equipped with various types of nozzles to meet various types of welding jobs

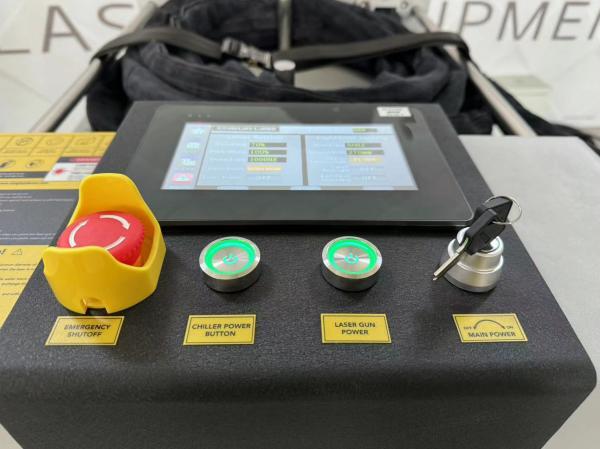

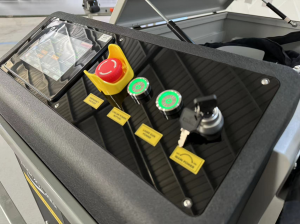

Control panel-MUTI language

Convenient touchable operation panel, simple UI interface design, making everyone a professional welder

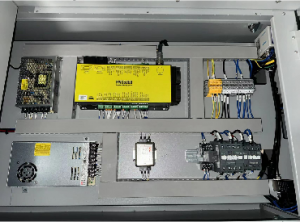

Electrical showing

Professional circuit design has improved the stability and safety of the product, using pneumatic components from Schneider Electric in France and Yadeke in Taiwan

Main Configures

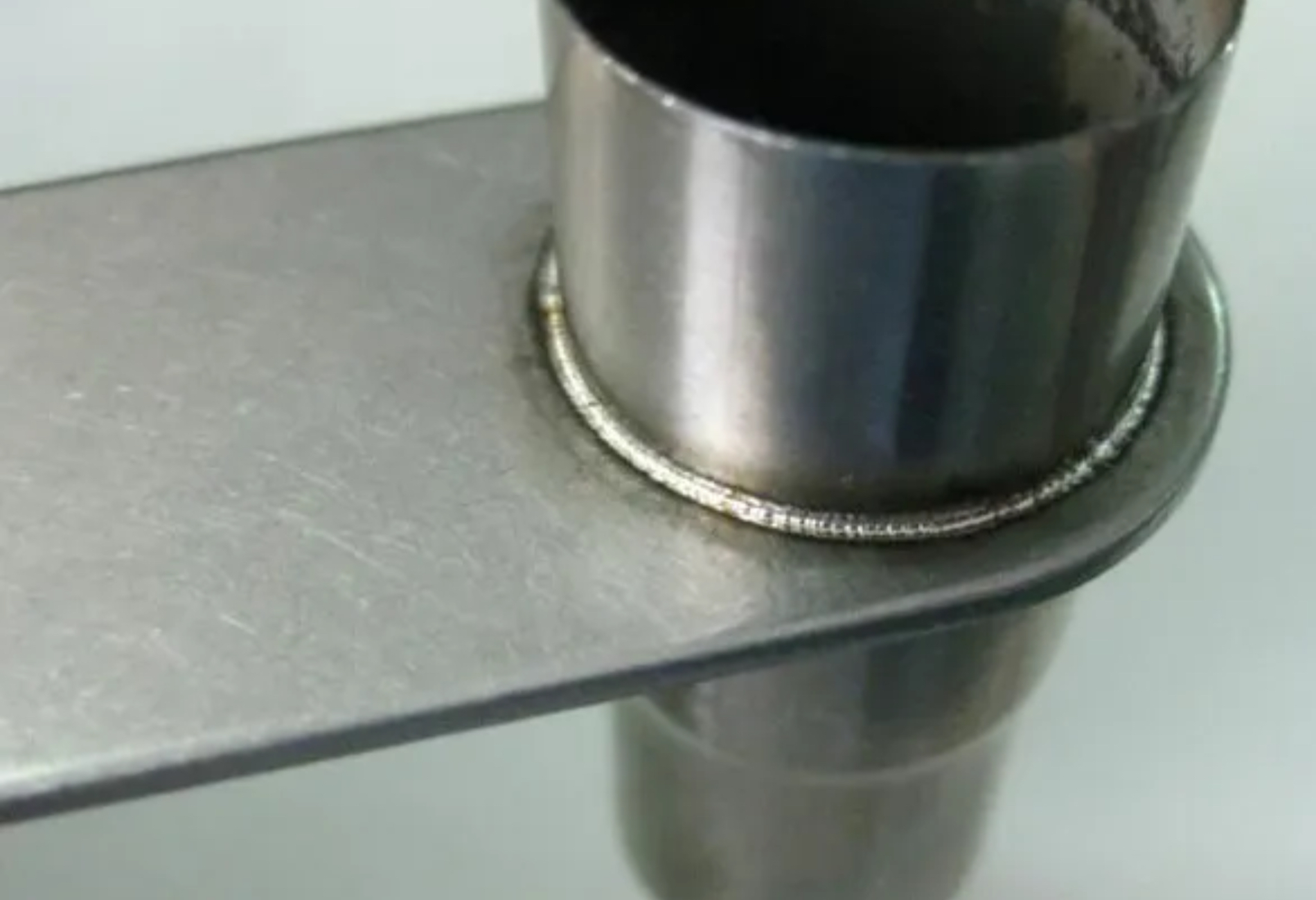

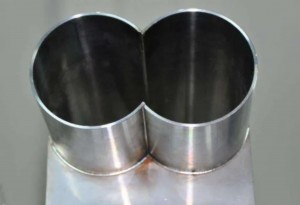

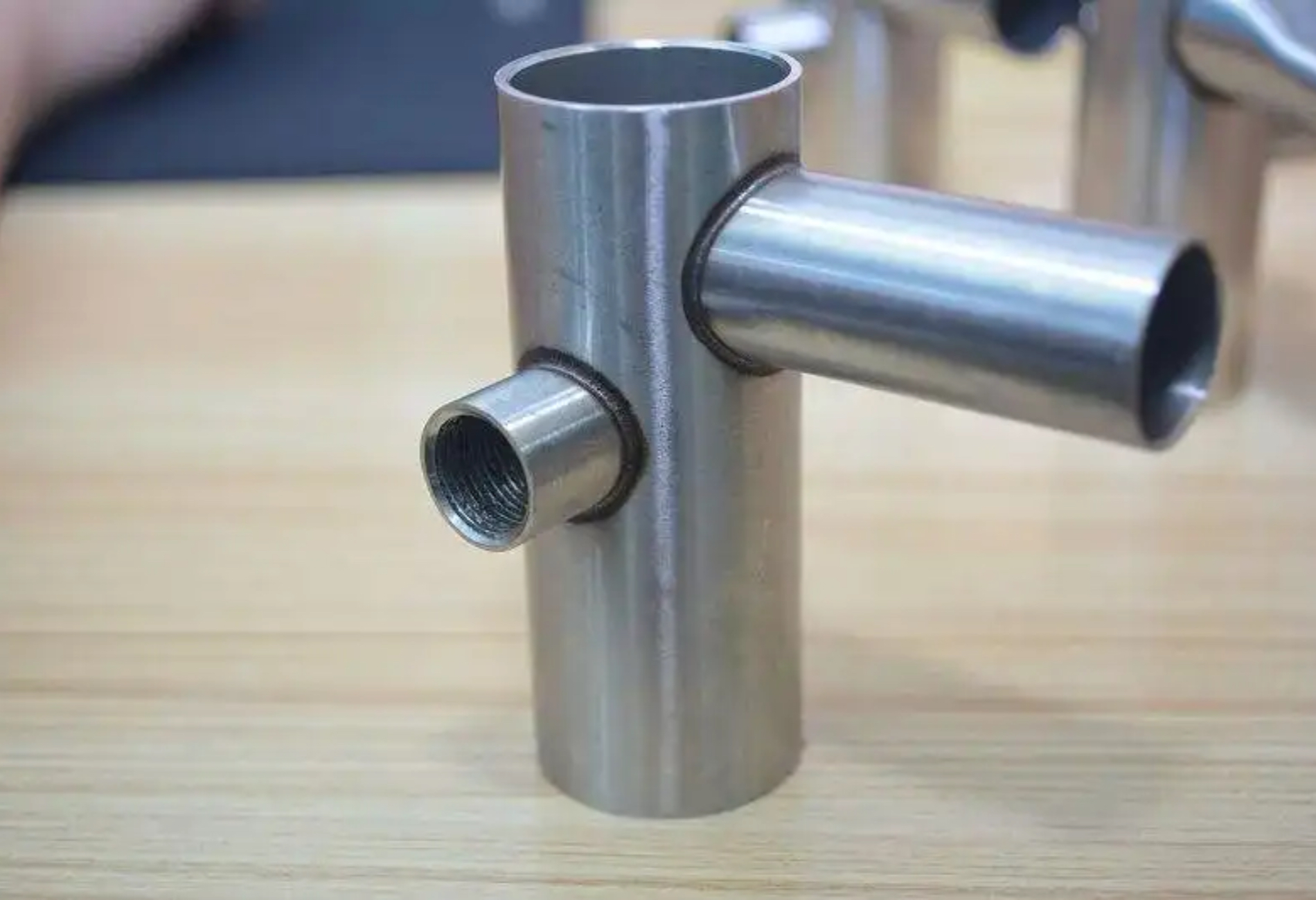

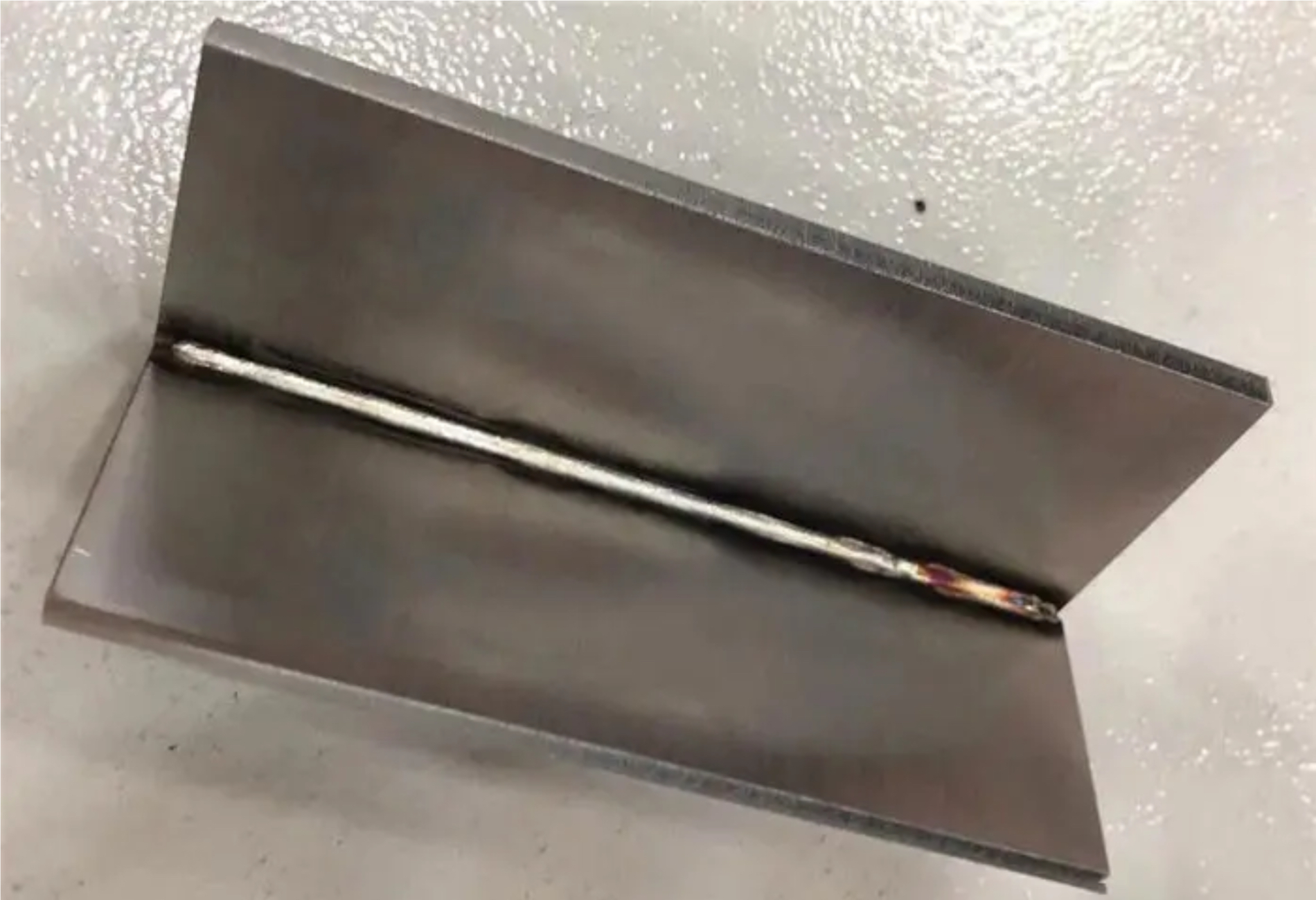

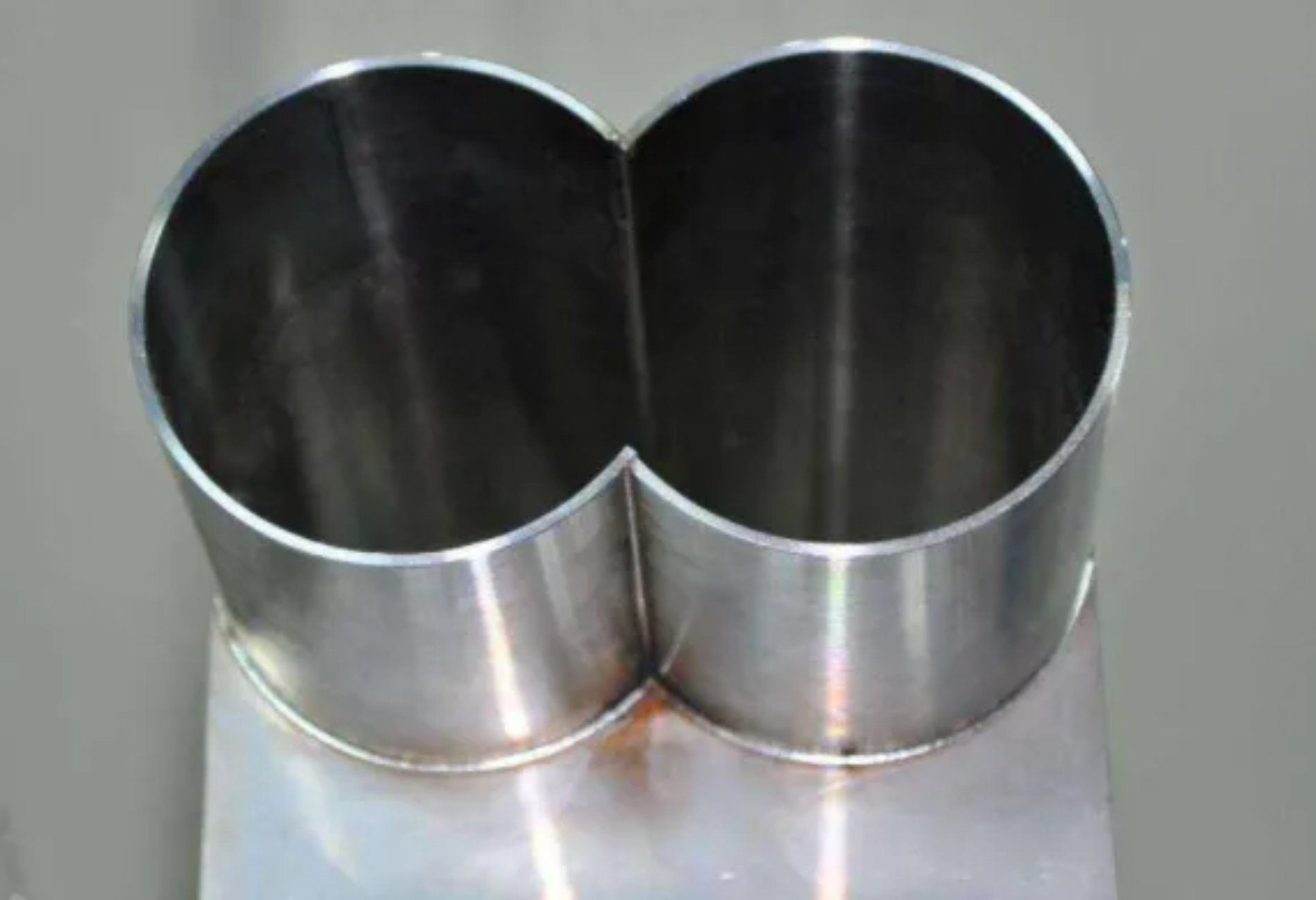

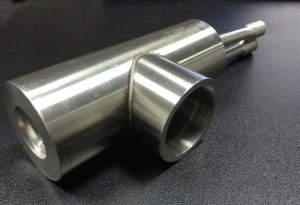

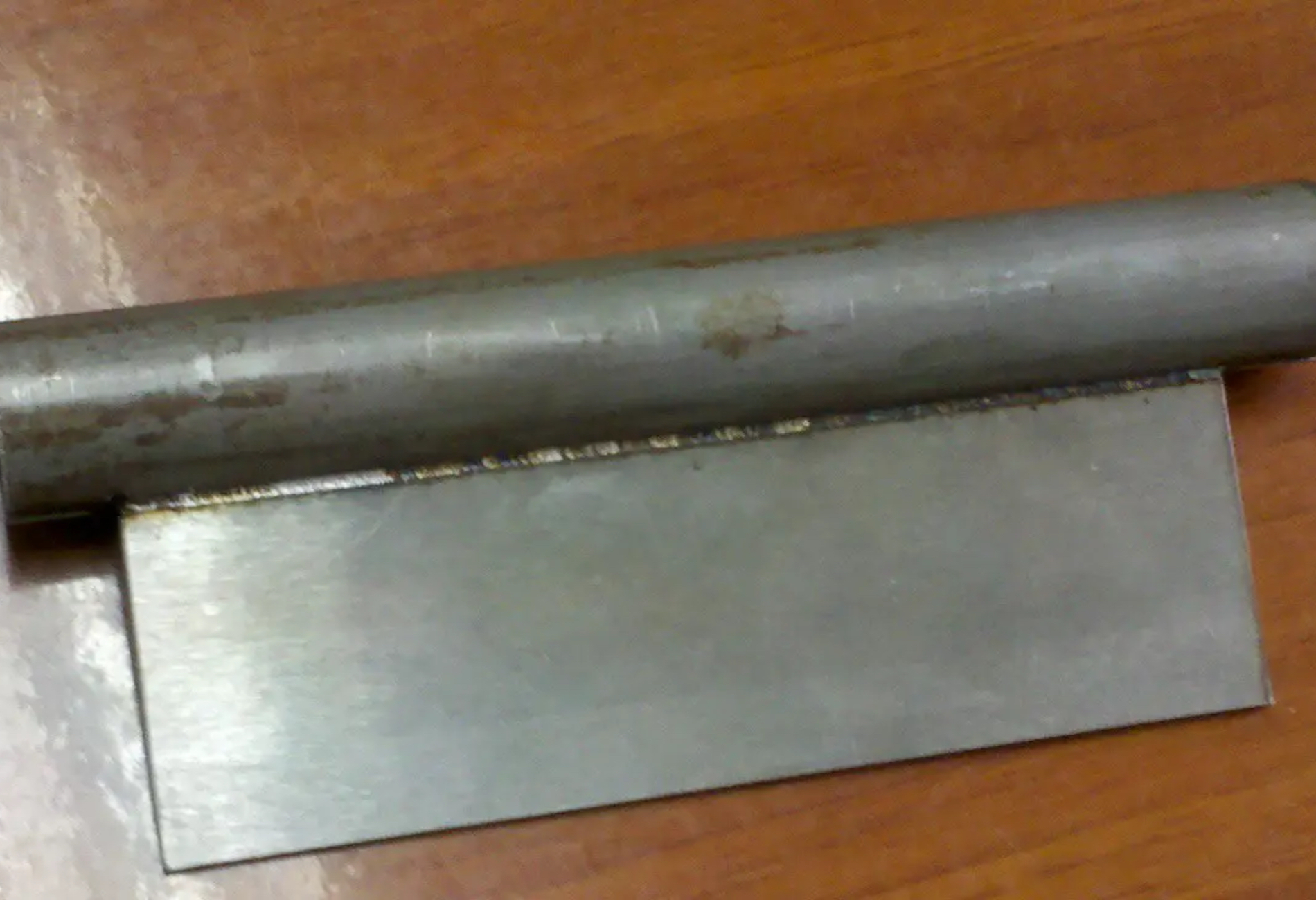

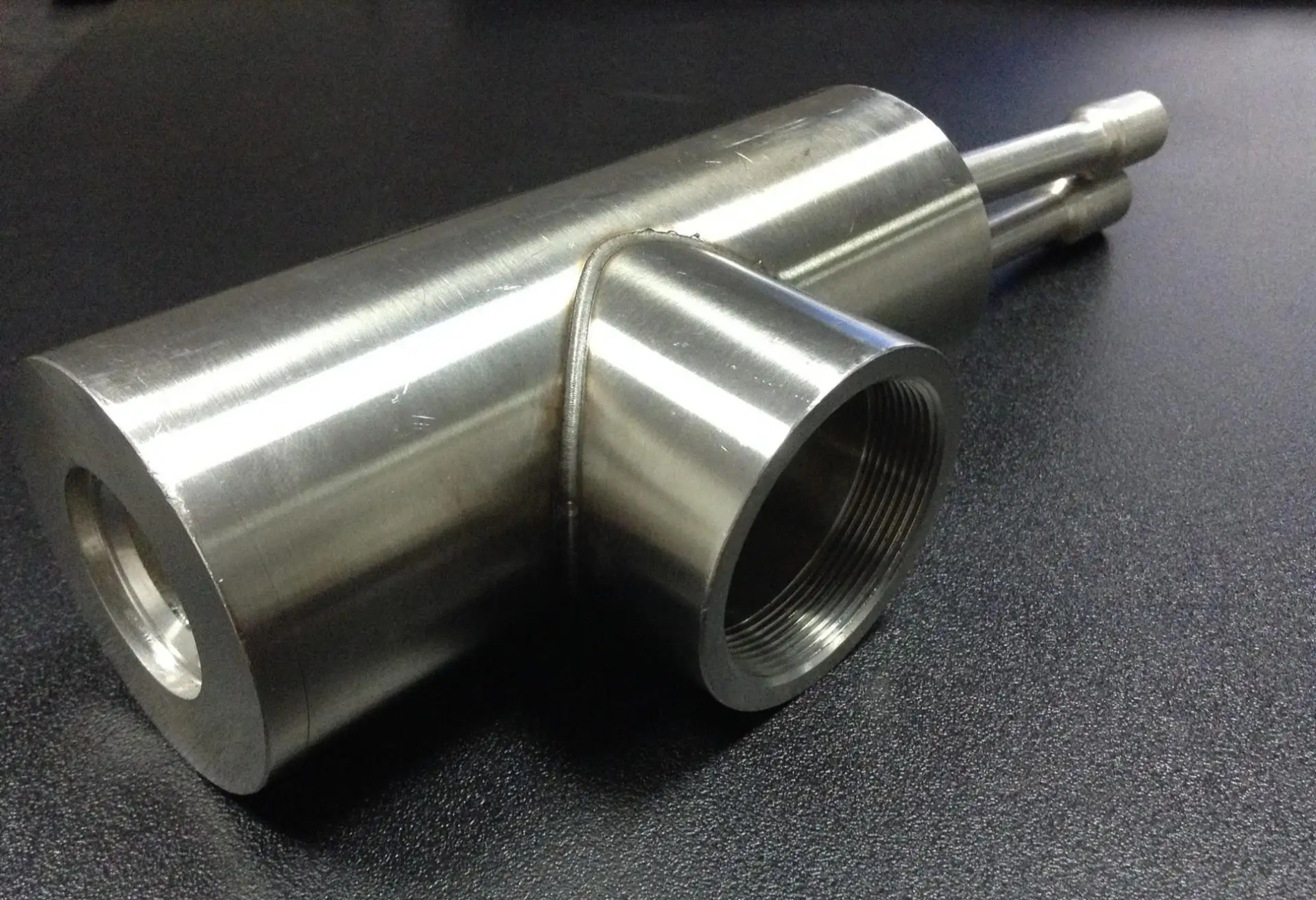

Samples & Application

For the welding of thin stainless steel, carbon steel, aluminum and other metal materials, it has the characteristics of simple operation, beautiful welding seam, fast welding speed, and no consumables. Outdoor welding is possible. The operation mode of the hand-held welding torch can realize the welding of the workpiece at any angle. Suitable for all kinds of complex welds and joints on all kinds of equipment.
