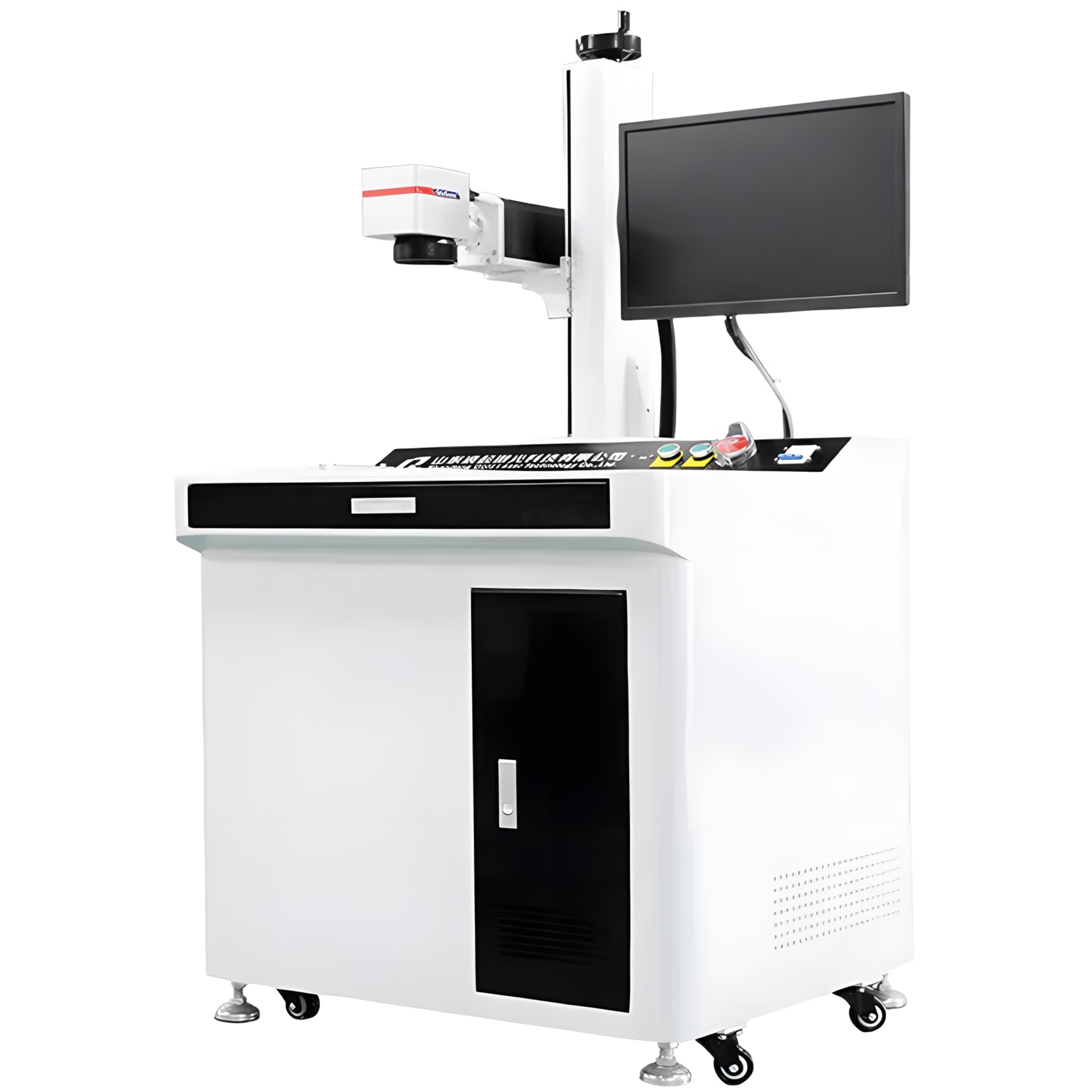

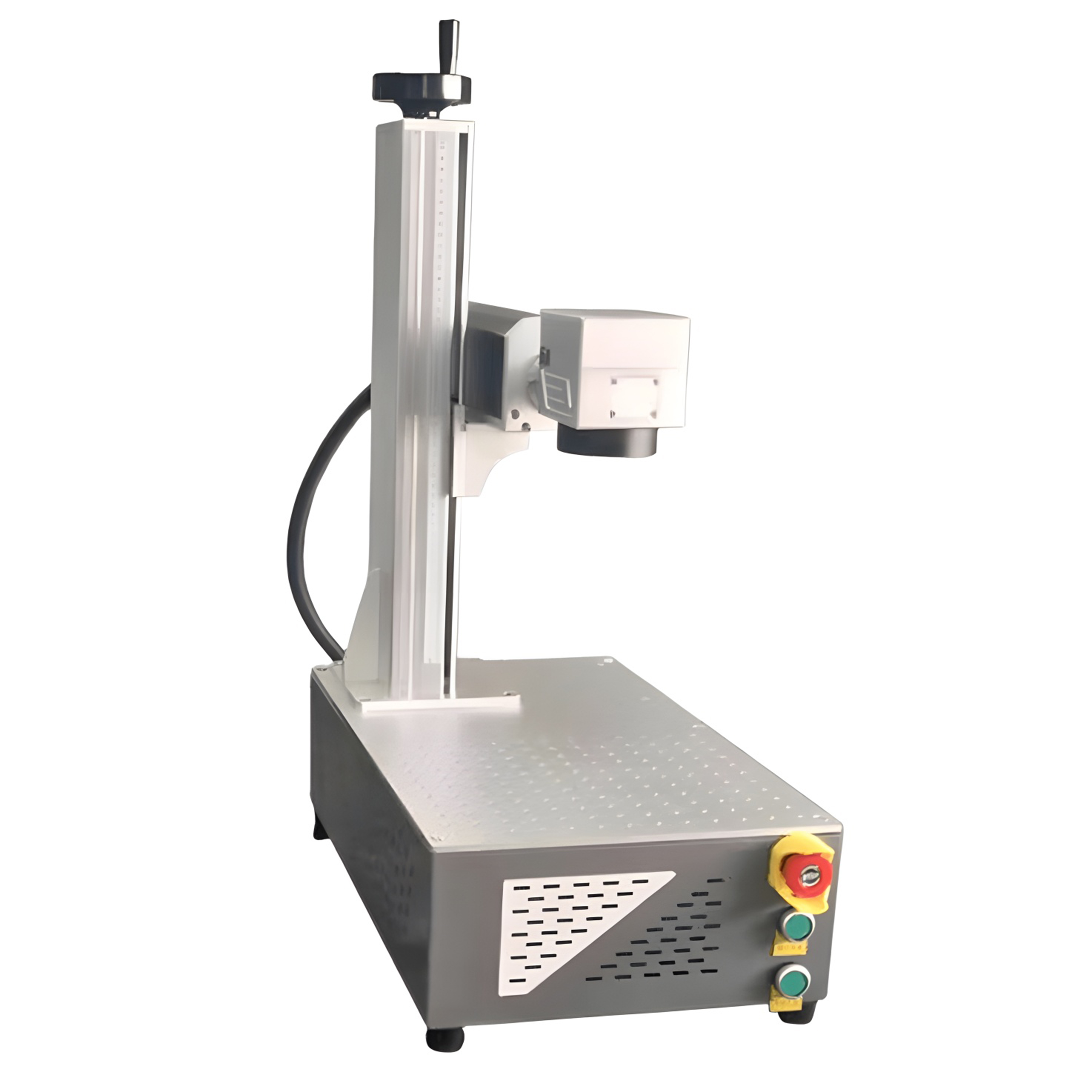

Fiber Laser Marking Machine- LM series
Technical Parameters
| Models | LM20 | LM30 | LM50/100 |
| Laser power | 20W | 30W | 50W/100W |
| Laser source | Raycus&MAX&IPG | ||
| Laser wavelength | 1064nm | ||
| Repeat accuracy | ±0.00025mm | ||
| Engraved line width | 0.01mm-0.1mm | ||
| Engraving speed | 1000-1500 mm/s | ||
| Engraving area | 110*110mm (75mm-500mm opcional) | ||
| Focal distance and position | Adjustable with 3 points for engraving | ||
| Operating system | WinXP, Win7, Win8, Win10 | ||
| Weight | 75KG | ||
| Machine size | 800*750*1400mm | ||
| Energy | 100-110V / 200V-240V,50HZ-60HZ | ||
| Total power | 500W | ||
| Operating temperature | 5-45℃ | ||
| Operating Humidity | 10%-90% , no condensation | ||
| Engraving Control Form | foot switch | ||
Main Configures

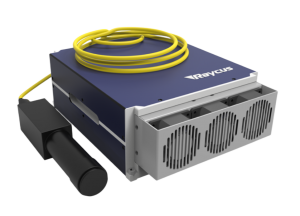

Laser source - MAX&Raycus
1.Stable quality
2.High performance
3.Long useful life

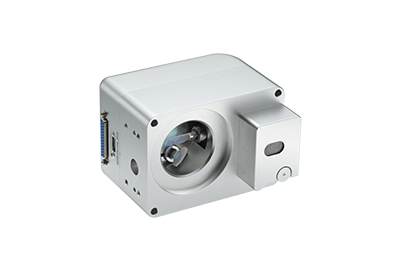

Galvanometer - JHC
1.High speed galvanometer
2.Red light indicator
3.With high efficiency custom shielded signal lines
4.Fast and stable reaction
5.Good anti-interference

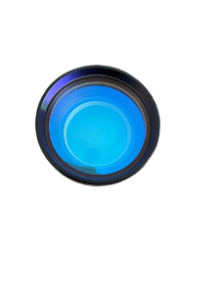

Field Lens - Wavelength
1.High light transmission lens without power loss
2.The coating is resistant to smoke corrosion.

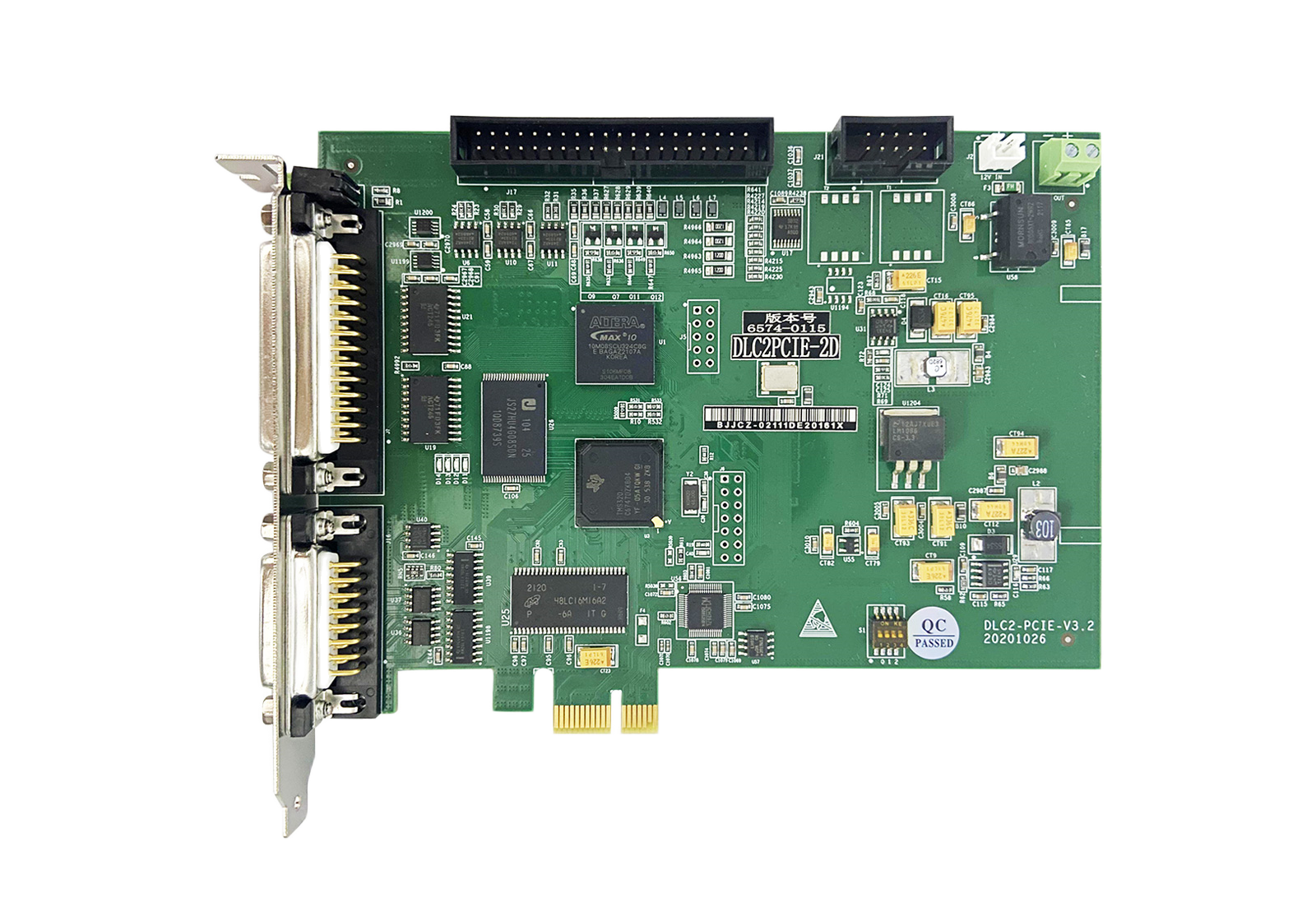

Control Card - BSL
1.The operation interface is convenient and easy to master
2.Recorded offline, online editing does not affect current recorded
3.Powerful functions, flexible selection of markup method, font library, fill method, file editing and modification
4.Strong scalability, support USB memory import
5.Multiple language selection

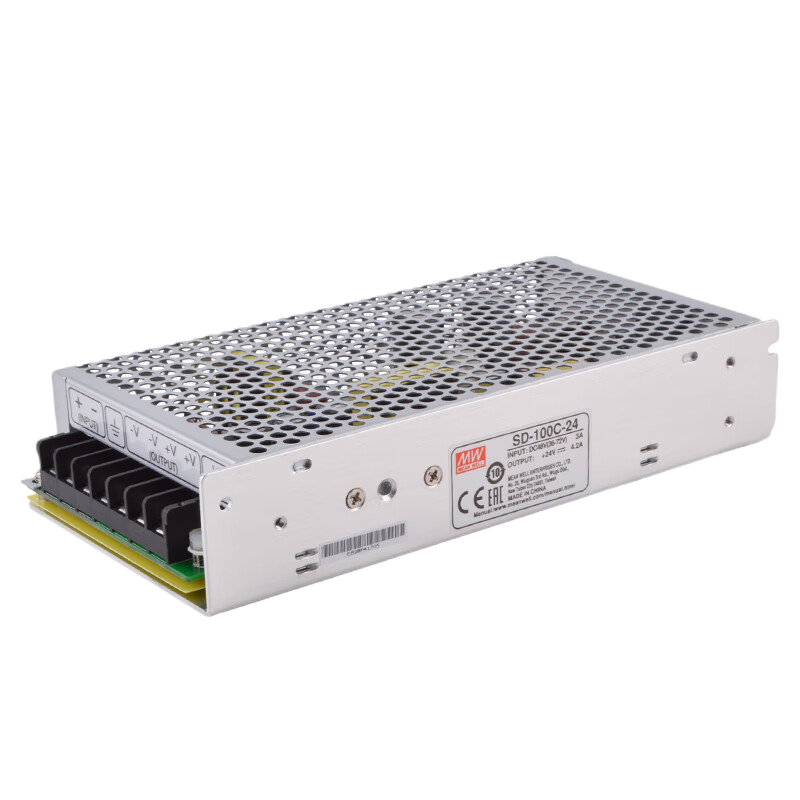

Power Supply - Mear Well
1.Built-in varistor effectively protects the machine
2.Can change the voltage at will
Optional Accessories

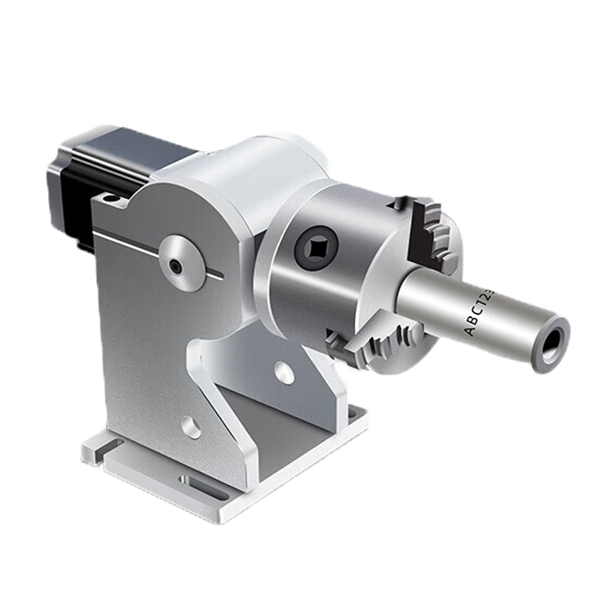

Rotary Clamp
Diameter: 80mm

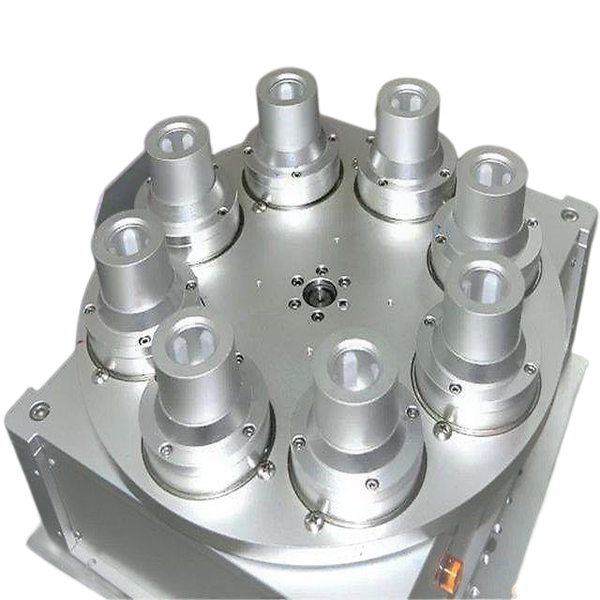

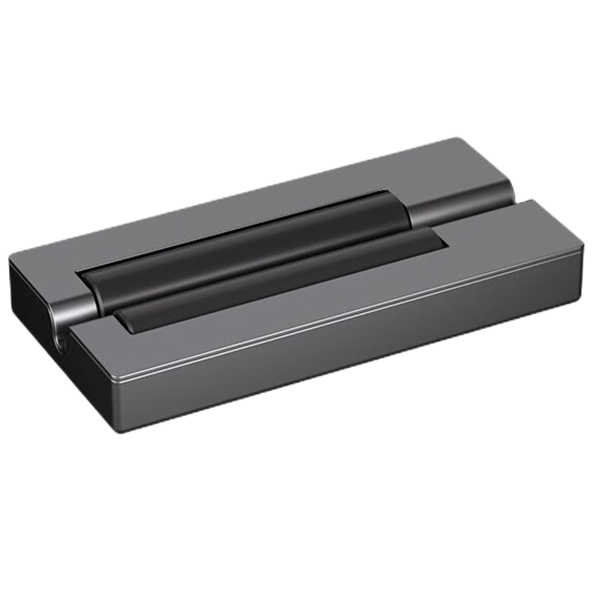

Flat Rotate Table
Can be put 24 pcs pens
Wheel Rotary Clamp
Suitable for 5-120mm diamater cylinder.

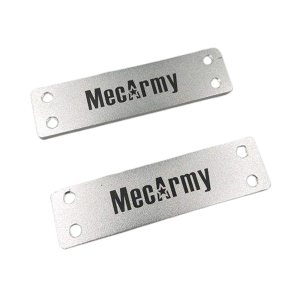

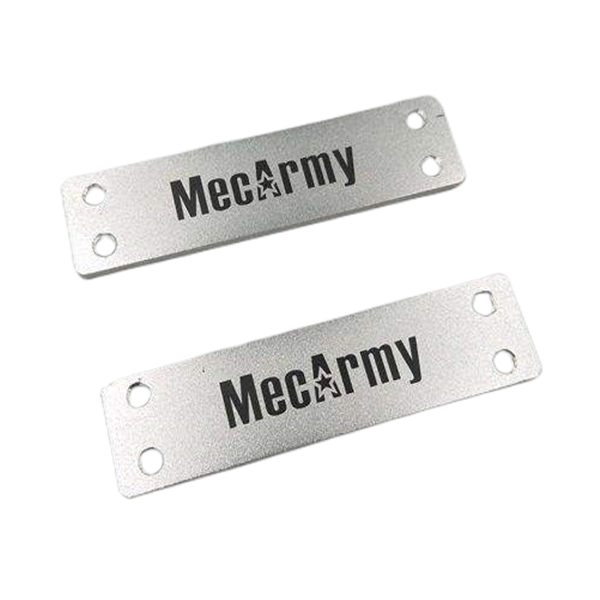

Samples & Application
mark and etch carbon, stainless steel, brass, copper and firearms, auto parts, wine cork, jewelry, bar code, serial numbers, and industrial polymers.
Almost suitable for all kinds of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.
