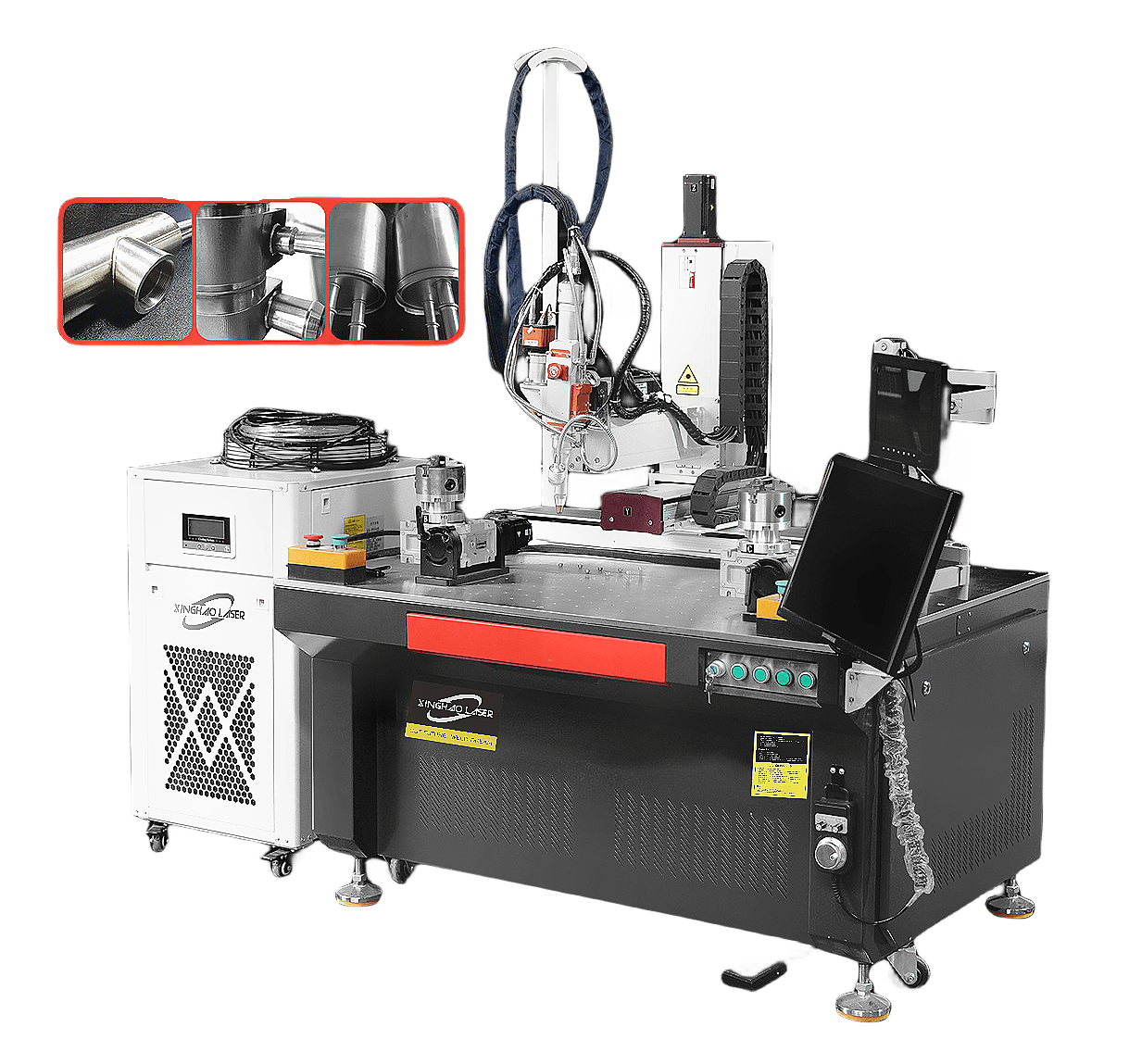

RW series platform automatic laser welding equipment

Short Description:

RW series platform automatic laser welding, expandable for 3/4/ 5/6  axes, high flexibility, fast response speed, adaptable to diverse scenarios, with welding advantages of beautiful and firm welds, simple operation, one click operation, 8-10 times faster than traditional welding speed,

1. Fast welding speed, 2~10 times faster than traditional welding.

2. Easy operating need no training.

3. Welding seam beautiful smooth and beautiful, don’t need polish, save your time.

4. No deformation or welding scar, firm welding of the work piece.

5. Laser welding has less consumables and long service life.

6. Safer, more environmentally friendly.

Product Detail

Product Tags

Technical Parameters

Laser Power 1000W 1500W 2000W 3000W
Laser Source Raycus & MAX
Welding Head Ultra X
 Control system CHAOQIANG&Au3Tech
Water chiller HANLI/S&A
Length of fiber cable 10m
Dimensions 1550X800X1350MM
Weigh 1260Kg
Power Requirements 220V 1 PHASE 60HZ
Working Humidity ≤70%
Working temperature 5-45°
Welding Depth
Laser Power 1500W 2000W 3000W
Stainless steel Max welding depth 4mm Max welding depth 6mm Max welding depth 8mm
Aluminum Max welding depth 3mm Max welding depth 4mm Max welding depth 6mm
Mild steel Max welding depth 5mm Max welding depth 6mm Max welding depth 8mm

RW series platform automatic laser welding equipment

O1CN01JnmPGQ26VXYv7j6GG_!!2216257197667-0-cib_副本

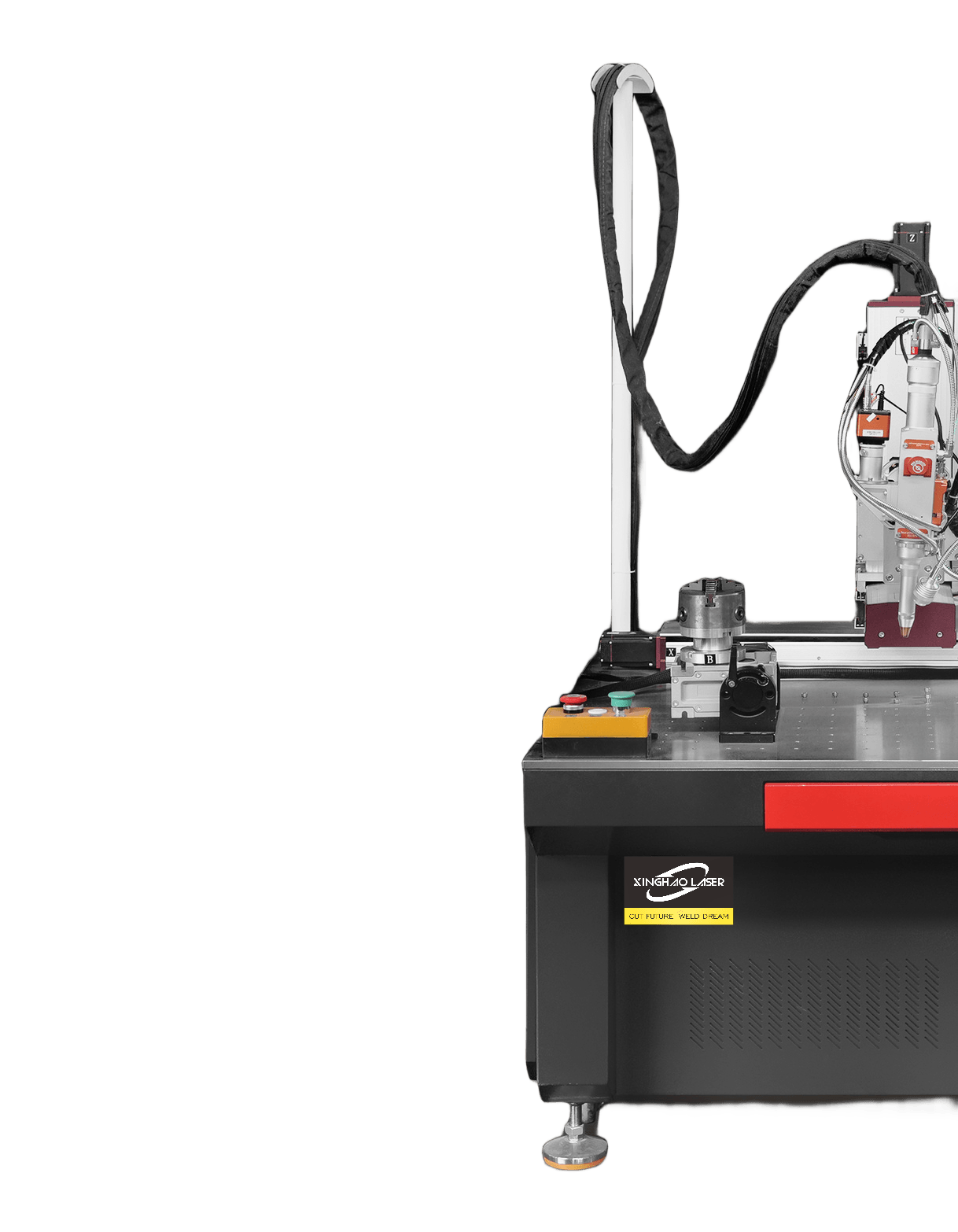

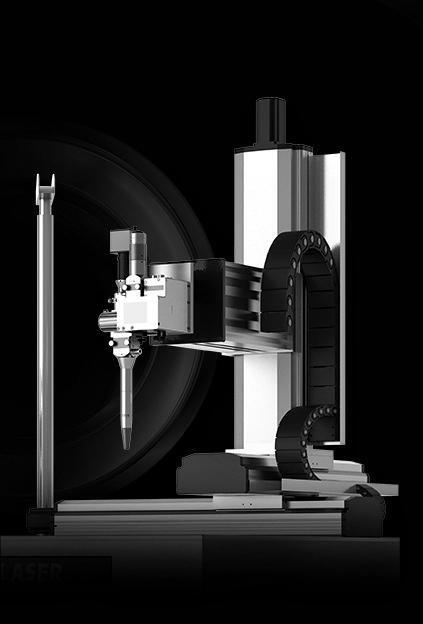

RW series platform automatic laser welding equipment

RW series platform automatic laser welding, expandable for 3-4 to 5-6 axes, high flexibility, fast response speed, adaptable to diverse scenarios, with welding advantages of beautiful and firm welds, simple operation, one click operation, 8-10 times faster than traditional welding speed,

Main Configures

MAX

Laser Source - MAX&Raycus

Stable quality and high performance, with High photoelectric conversion rate

S&A

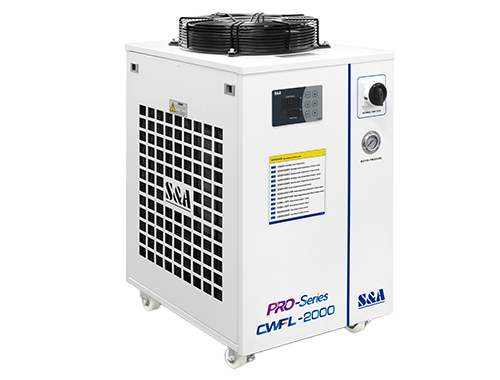

S&A/Hanli Water chiller - S&A

Accuracy of temperature control: ±1.5℃
φ12mm Quick connector，φ6mm Quick connector

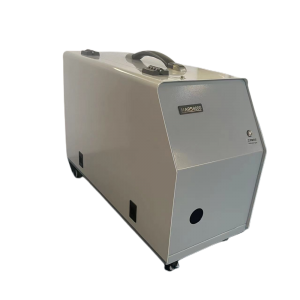

送丝机

Wire Feeder

Stepper motor, 5 meters feeding length
Wire diameter 0.8mm, 1.0mm
feeding speed 0-80mm/min

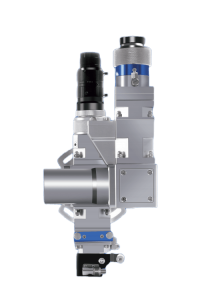

Welding Head - WSX&RAYTOOLS

Safe and stable, easy to operate
Stable light output and beautiful welding


MUTI Fuction system

Convenient touch screen operation

Stable control system, supports multiple languages

未命名图片-3

Various Welding Nozzle

The machine is equipped with various types of nozzles to meet various types of welding jobs

O1CN01XLzAVq26VXYpXeRkX_!!2216257197667-0-cib_副本

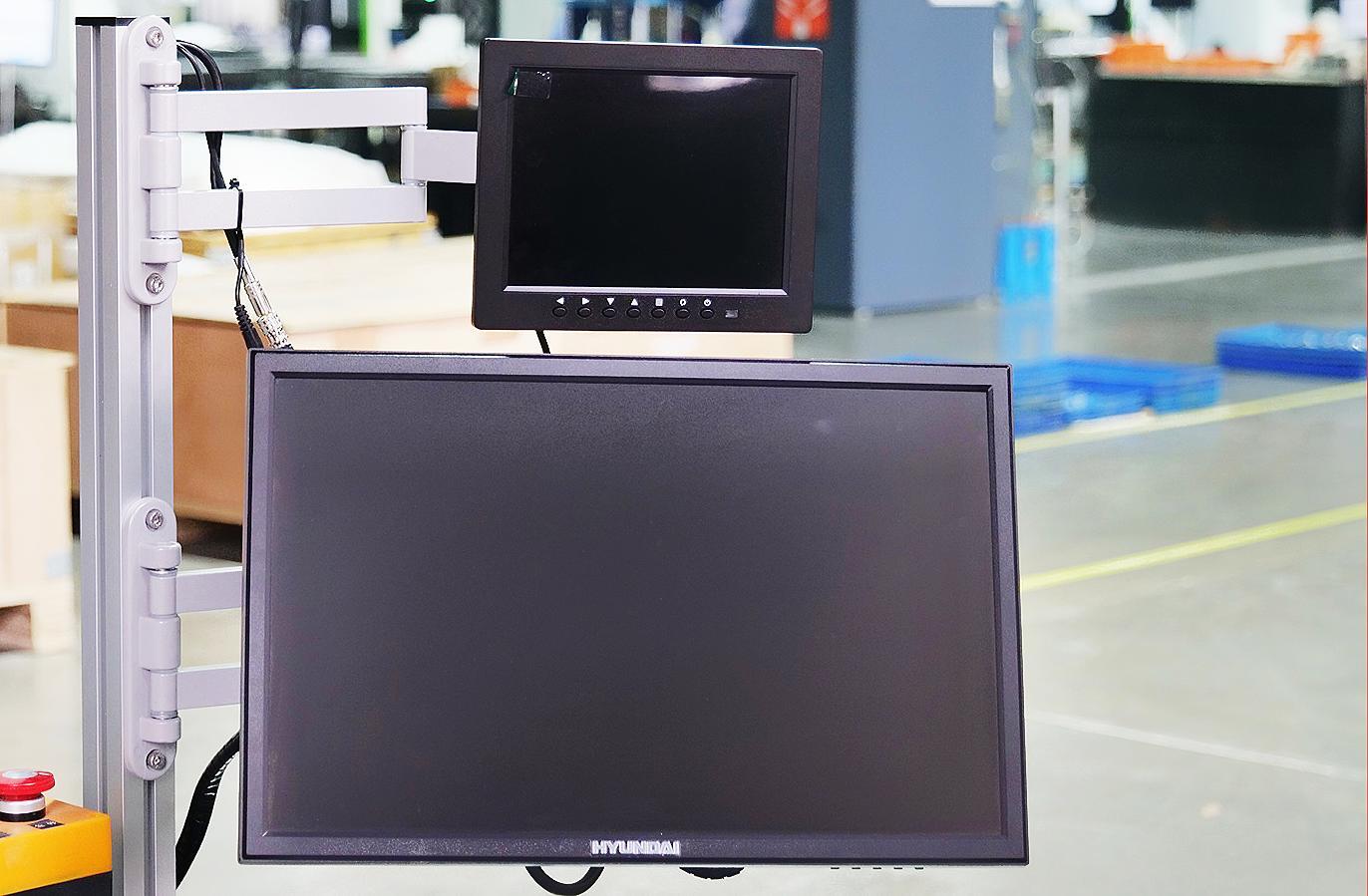

Control panel-MUTI language

Convenient touchable operation panel, simple UI interface design, making everyone a professional welder

8e0b173f3521d5e6dfc7ddc455b890b

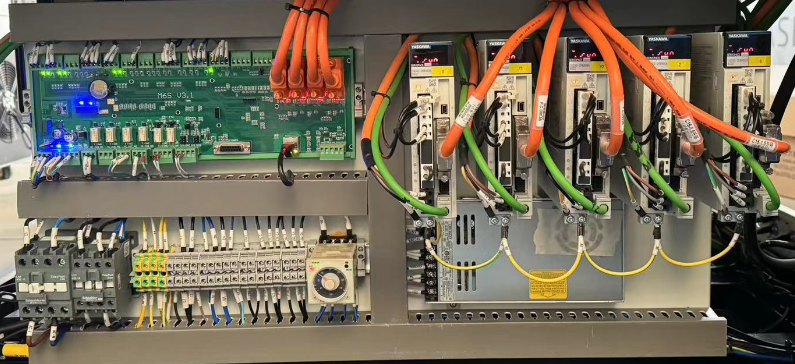

Electrical showing

Professional circuit design has improved the stability and safety of the product, using pneumatic components from Schneider Electric in France and Yadeke in Taiwan

Main Configures

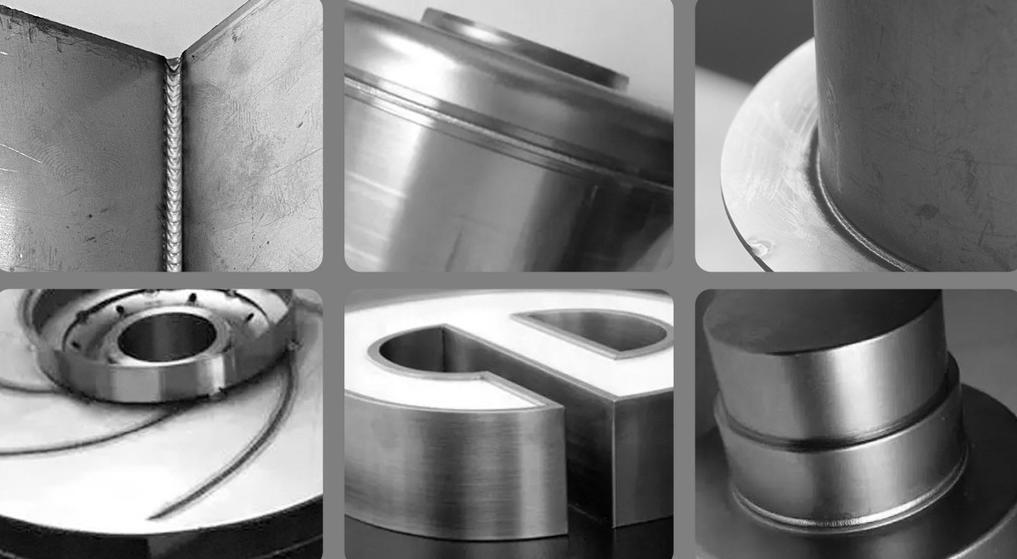

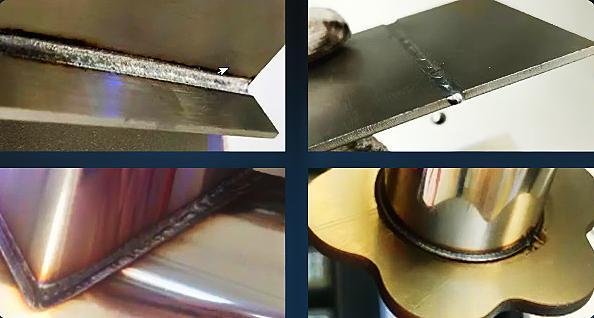

Samples & Application

For the welding of thin stainless steel, carbon steel, aluminum and other metal materials, it has the characteristics of simple operation, beautiful welding seam, fast welding speed, and no consumables. Outdoor welding is possible. The operation mode of the hand-held welding torch can realize the welding of the workpiece at any angle. Suitable for all kinds of complex welds and joints on all kinds of equipment.
