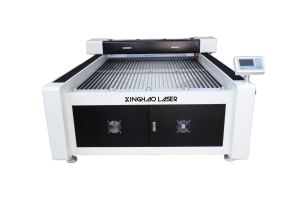

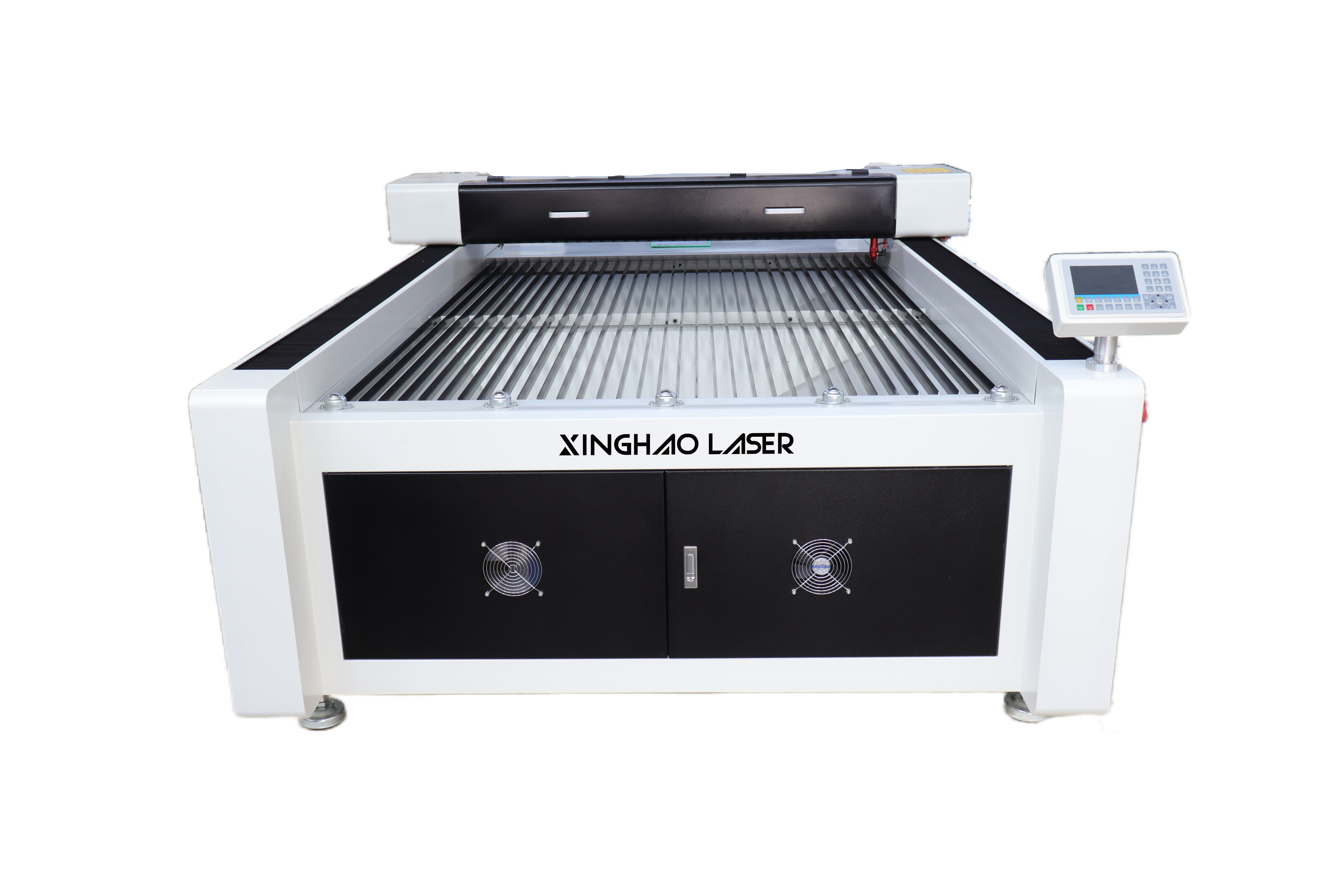

CO2 Laser Engraving Machine – LD series
Technical Parameters
| Model | LD3015 | LD1325 | LD1390 |
| Working Area | 3000mm x 1500mm | 2500mm x 1300mm | 1300mm x 900mm |
| Control System | RuiDa | ||
| Control Software | RDV8 | ||
| Laser Power | 50 - 300W | ||
| Laser Source | YONGLI&RECI | ||
| Max Movement Speed | 30m/min | ||
| Max Acceleration | 0.5G | 0.5G | 0.5G |
| Chuck Type | Mechanical & Automatic | ||
| Motor | Leadshine | ||
| Positioning Accuracy | 0.1mm | ||
| Repositioning Accuracy | 0.05mm | ||

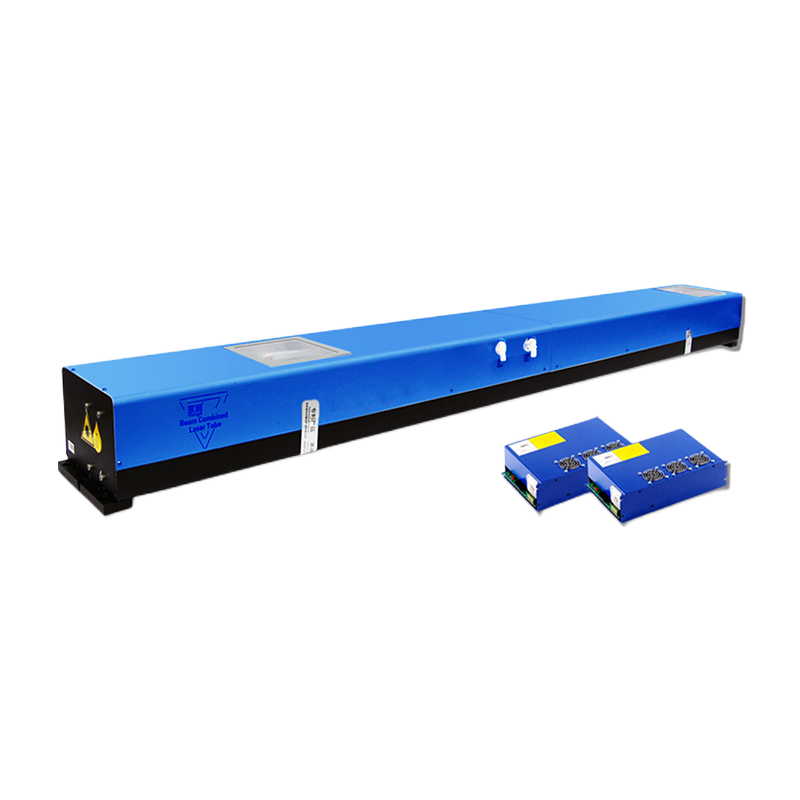

YONGLI&RECI Laser source
YONGLI is a global leader in high-power CO2 lasers. Its CO2 laser has the advantages of high beam quality, high reliability, high output power, high electro-optic conversion efficiency, low maintenance cost, small size, compact structure, good mobility and durability, low power consumption, and environmental friendliness.
XH Laser source
XH Optical Laboratory, located in Shanghai, China, has been committed to the R&D of laser cutting head industry for 14 years. Its products have sold well in more than 120 countries.

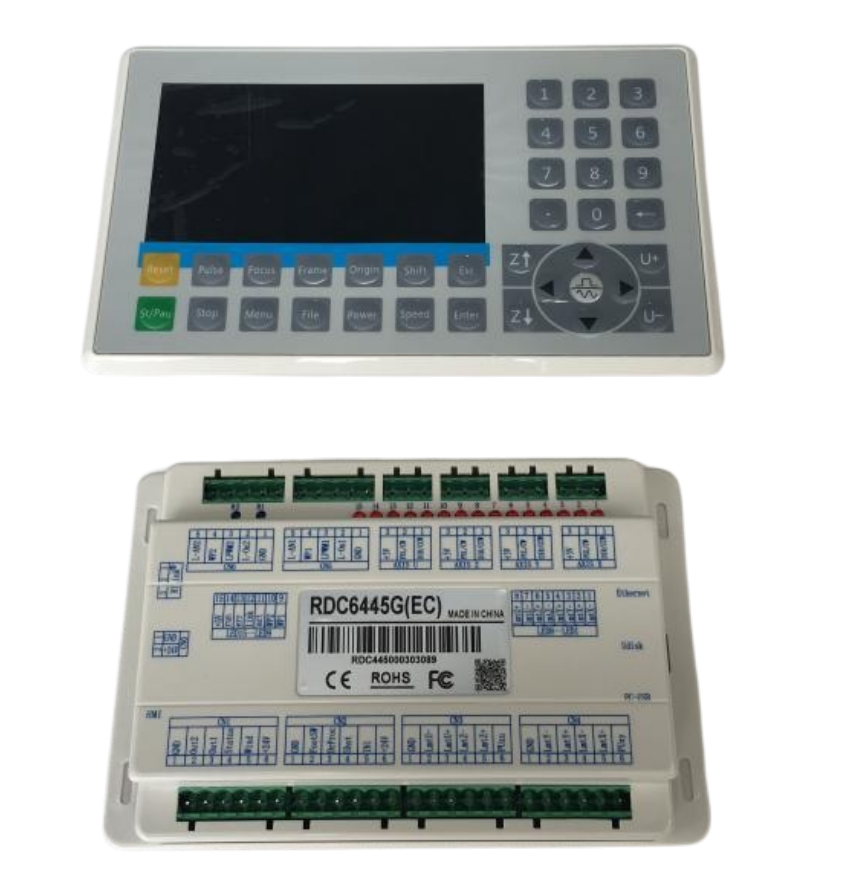

Cutting system
RUIDA is a widely used CO2 laser cutting process software, which has a large customer base and feedback, stable performance and comprehensive functions. RUIDA software is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphic processing, parameter setting, user-defined cutting process editing, layout, path planning, simulation and cutting control.

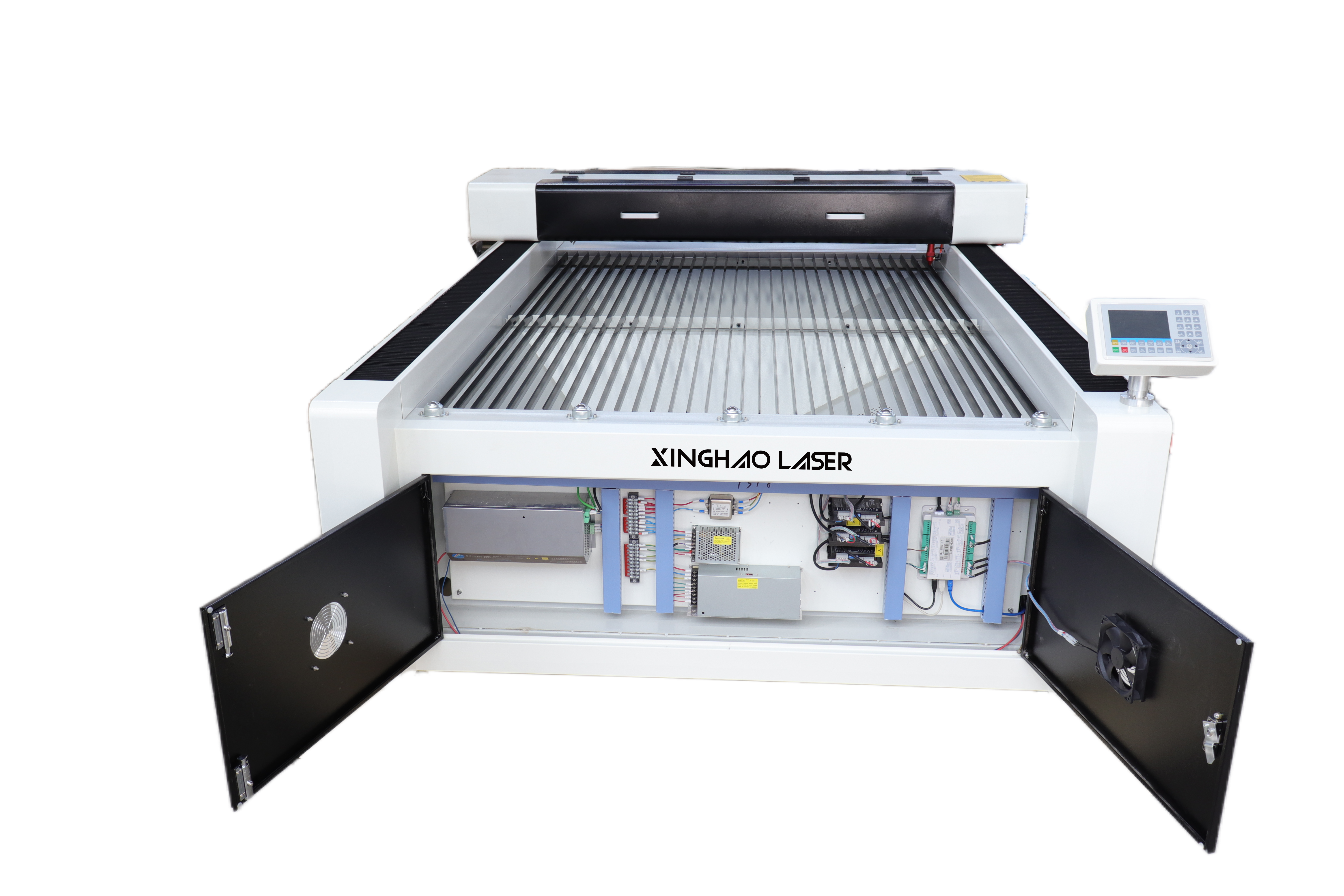

Square Tube Welding Work Bed
High performance, strong stability, good integrity, rigidity and toughness;
One-piece cast aluminum beam, no rivets at both ends, more stable.

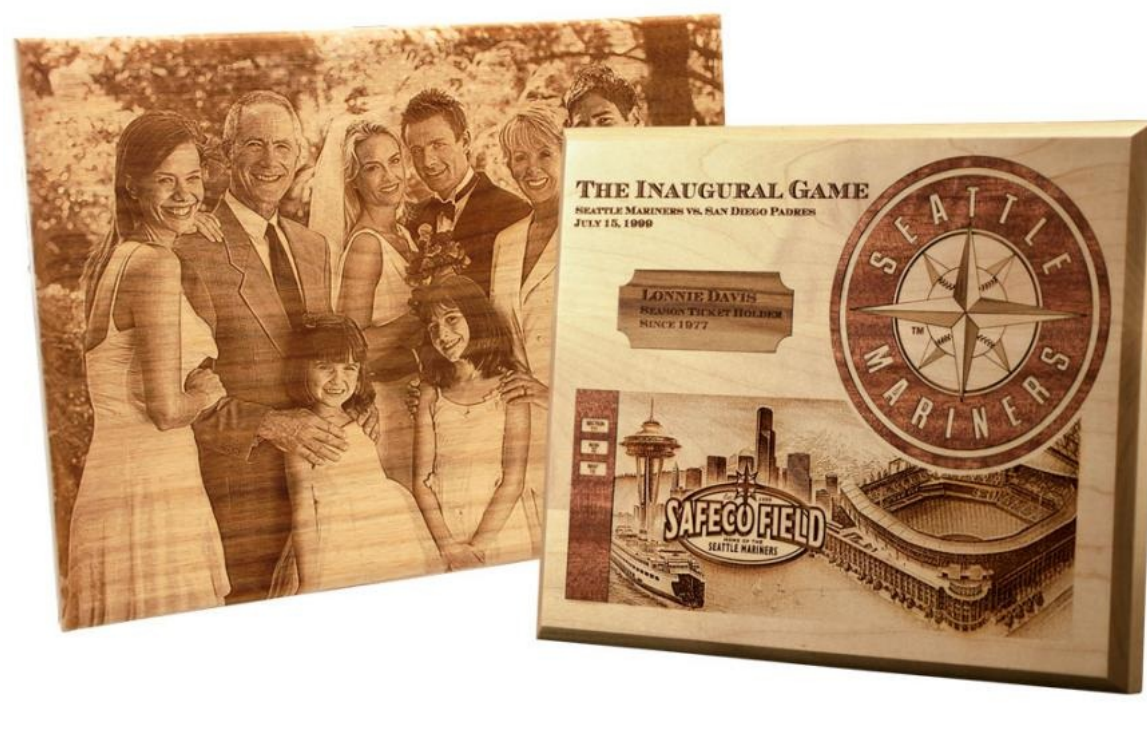

Samples & Application
CO2 engraving machine can not only complete the engraving of non-metallic materials, but also has the cutting ability of non-metallic and metal materials
