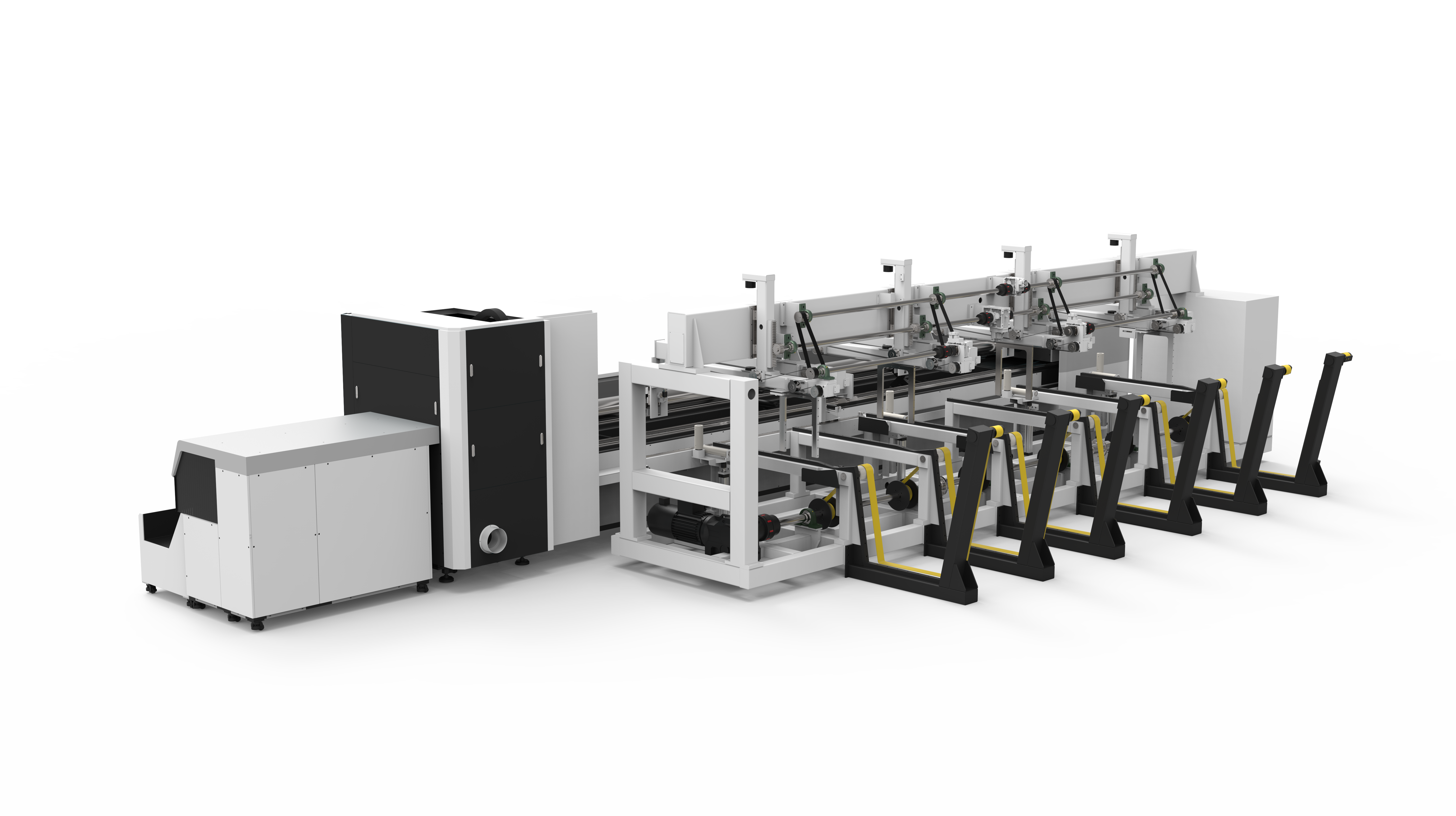

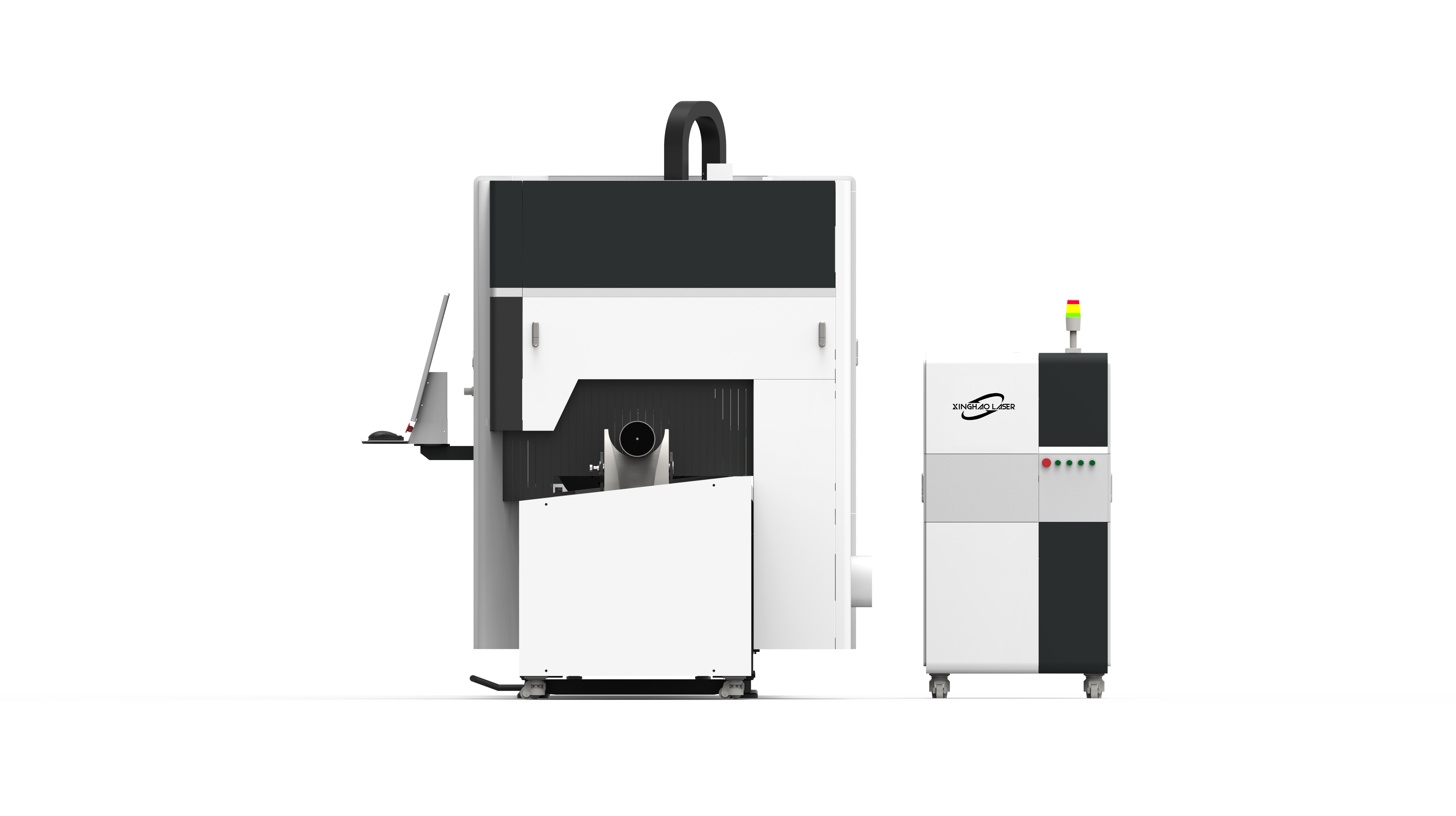

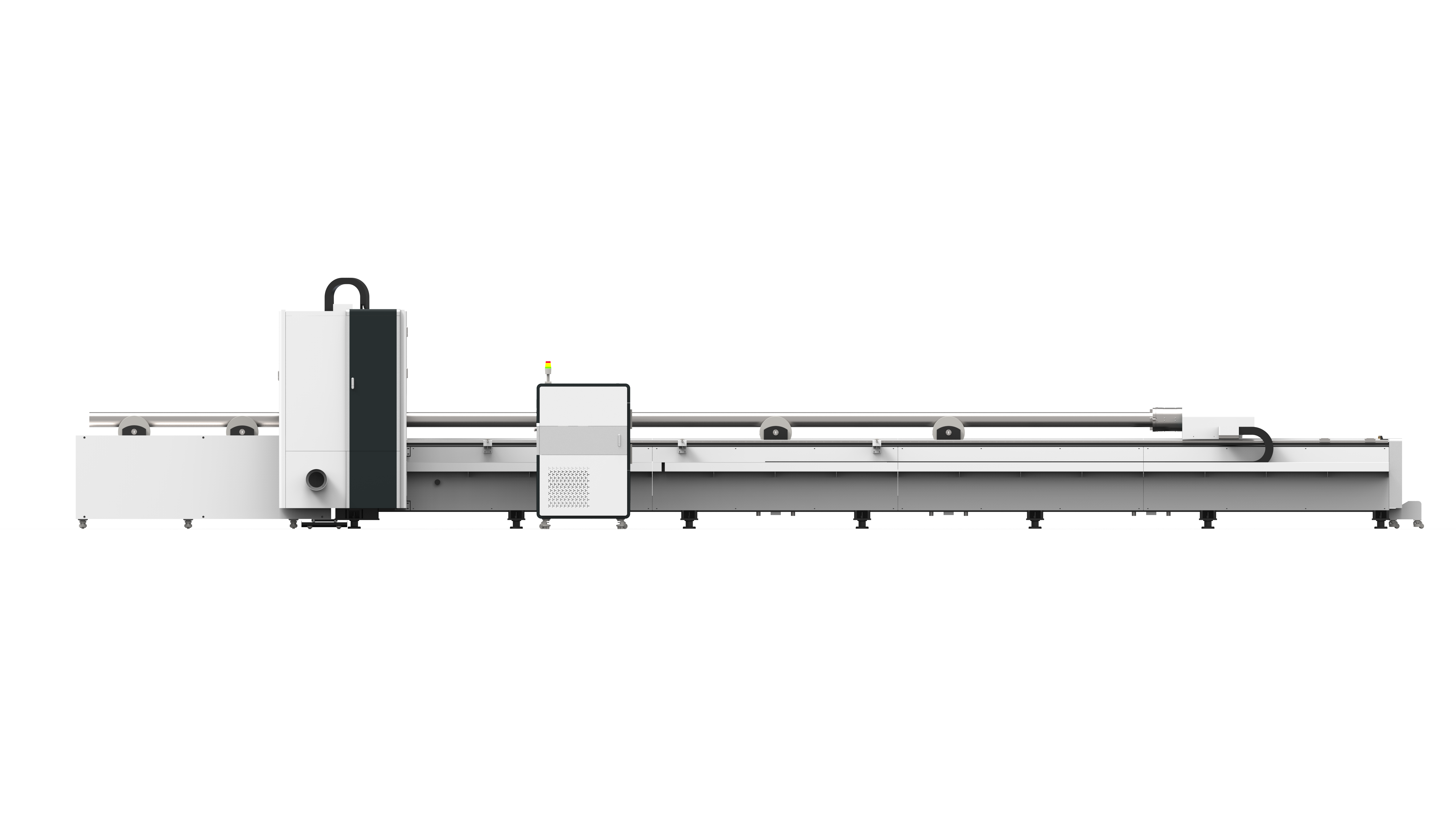

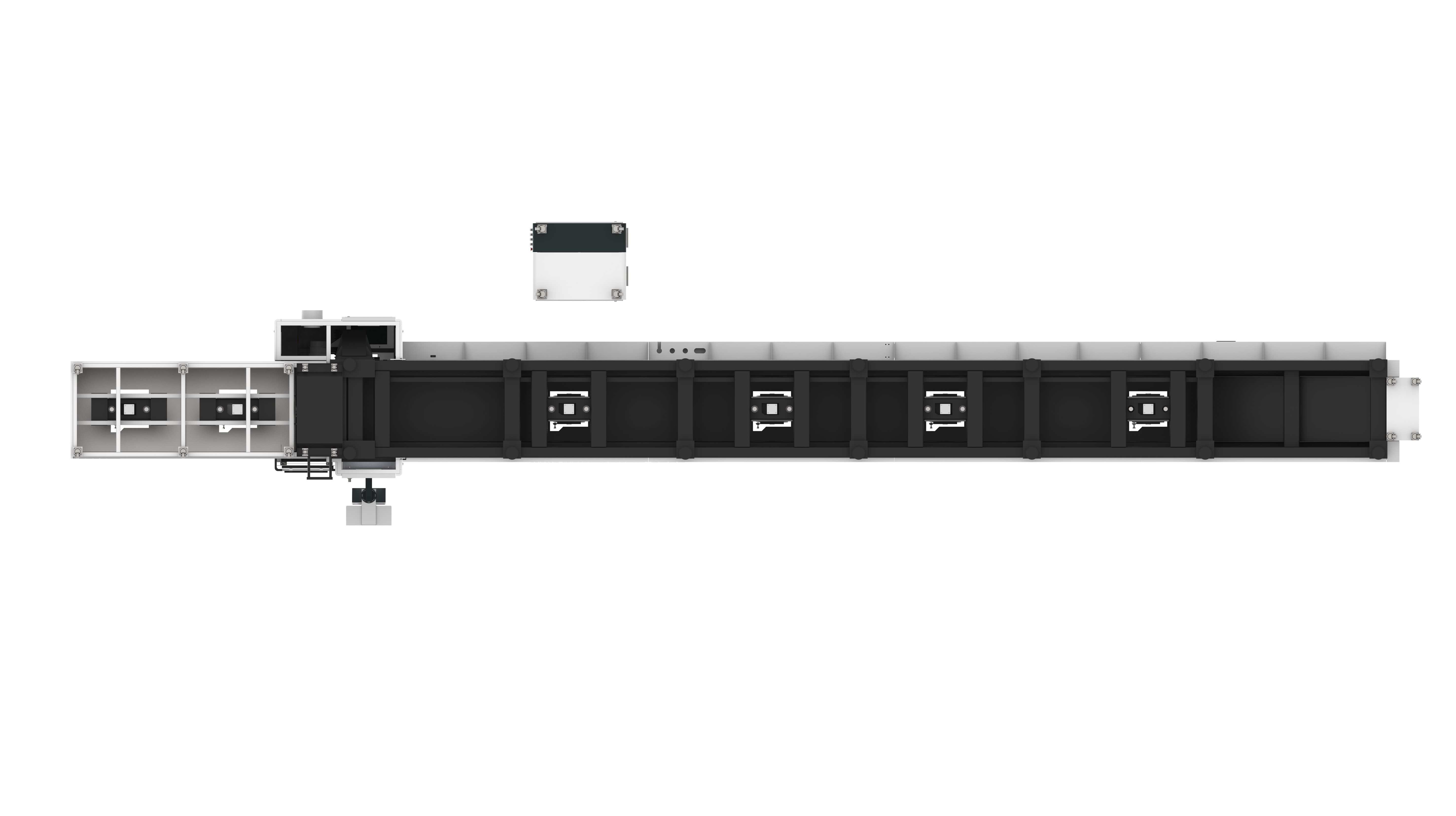

Automatic Tube Cutting Machine – T series
Technical Parameters
| Model | T6-160 | T6-230 | T6-350 |
| Laser source | Raycus & MAX & IPG | Raycus & MAX & IPG | Raycus & MAX & IPG |
| Laser power | 1000-6000w | 1000-6000w | 1000-6000w |
| Tube cross-sectional shape | Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes | Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes | Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes |
| Tube size range | Round tube：φ20-φ160mm | Round tube：φ20-φ220mm | Round tube：φ20-φ350mm |
| Square tube ：□20-□160mm | Square tube ：□20-□220mm | Square tube ：□20-□247mm | |
| Maximum machinable tube length | 6000mm | 6000mm | 6000mm |
| Requirements for tubes | thickness≥1.2mm； | thickness≥1.2mm； | D thickness≥1.2mm； |
| Diameter≥φ20mm | Diameter≥φ20mm | Diameter≥φ20mm | |
| Maximum tube weight | 100Kg | 200Kg | 300Kg |
| Shortest remaining material | 115mm | 115mm | 115mm |
IPG&MAX Laser source
IPG Photonics is a global leader of the high power fiber laser. The fiber laser manufactured by it has such advantages as high quality light beam quality andreliability, ultrahigh output power, higher electro-optical conversion efficiency,lower maintenance cost, volume with compact structure, mobility and durability,low consumption, environment friendly, etc.

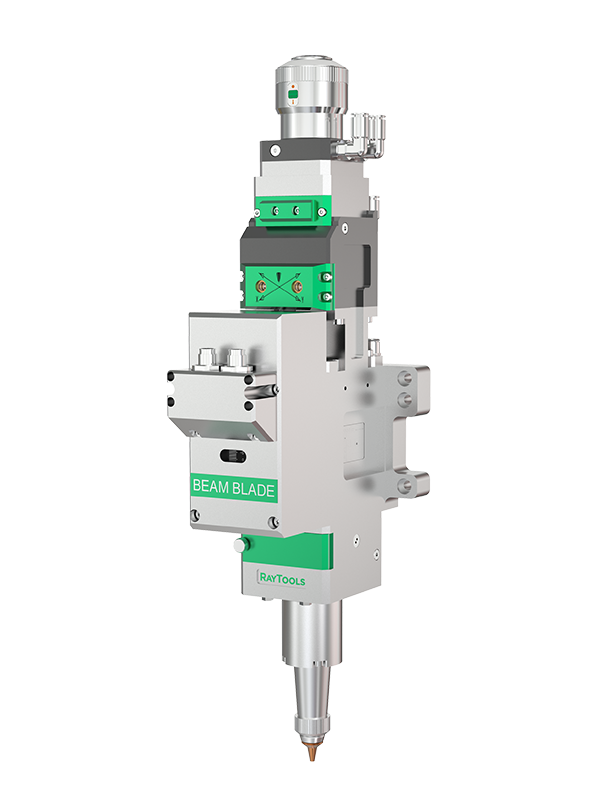

Raytools Laser source
Raytools originated in Switzerland and has been specialized in the research and development of laser cutting head industry for 26 years. Its products have been sold well in more than 120 countries.
Cutting system
TubePro pipe cutting software (hereinafter referred to as TubePro) is a professional cutting software for processing various pipes. It is perfectly and seamlessly connected with the nesting software Tubest, which realizes the nesting, edge sharing, basic process and special process processing of parts. After exporting the machining file, you can directly use TubePro to cut.
Square Tube Welding Work Bed
High performance, strong stability, good integrity, rigidity and toughness;
One-piece cast aluminum beam, no rivets at both ends, more stable.
Cast aluminum crossbeam
It adopts the low-pressure steel film casting process, so the crossbeam has the characteristics of high density, high rigidity and light weight, which can obtain higher dynamic response and improve processing efficiency.
Fully automatic pneumatic chuck, more stable
The installation is convenient and labor-saving, and there is no consumption and wear. The clamping degree of the workpiece is controlled by the air pressure to ensure the stability of the feeding and the accuracy of the cutting
Samples & Application
Sheet & Tube Laser Cutting Machine, application for process both steel sheet and tube.
Carbon and stainless steel, mild steel, soft steel, galvanized steel, coated steel, alloy, aluminum, copper, brass, titanium and more
Round, square, triangle, rectangle, oval, circular tubes and pipes.
One machine can achieve two purposes. for users who need to cut plates and pipes, the purchase cost is greatly saved.
